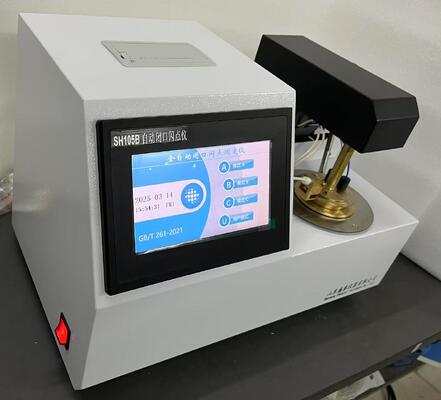

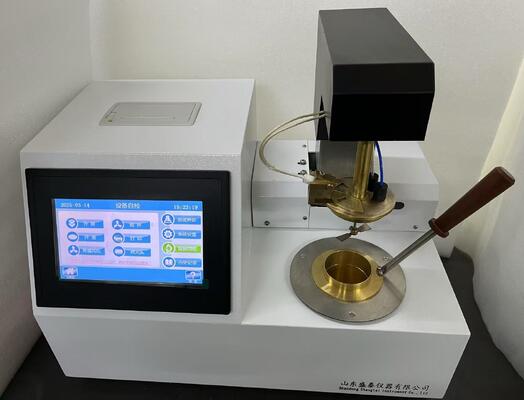

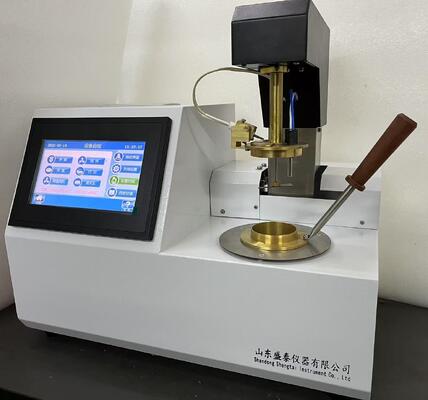

The SH105B Fully Automatic Closed Cup Flash Point Tester is built with microcomputer control and a large LCD screen. Following standard test procedures, the instrument automatically completes heating, cup lifting, ignition, flash point detection, value locking and result printing. It will initiate automatic cooling once the test finishes, delivering fully automated operation. This tester is widely applied in electric power, petroleum, chemical, commodity inspection and research laboratories. It conforms to ISO 2719, ASTM D93 and GB/T261-2021.

Flash point

Under the specified test conditions, the test flame causes the sample vapor to ignite and spreads the flame to the lowest temperature on the liquid surface, corrected to 1013kPa atmospheric pressure.

Standard: GB/T261-2021 ASTMD93

Technical performance parameters:

A. Step B and C conversion

This instrument features a large color LCD screen, full Chinese HMI dialogue interface and membrane keypad.
It automatically detects atmospheric pressure, calculates correction values and compensates for the pressure influence on test results.

The entire test sequence including cup opening, ignition, flash point detection and data printing runs automatically, with automatic lifting and lowering of the test arm.
It adopts electronic ignition and forced air cooling; no external gas supply is required.

- Printer: Built-in micro thermal printer
- Pressure sensing: Integrated atmospheric pressure sensor for automatic pressure correction
- Safety advantage: Gas-free automatic ignition enhances test safety

Temperature Measurement

- Range: Ambient temperature to 370 °C
- Accuracy: ±1 °C (≤104 °C); ±2 °C (>104 °C)
- Resolution: 0.1 °C
- Precision: 0.5%

Core Test Parameters

- Heating rate: Complies with GB/T261-2021
- Ignition: Automatic electronic ignition with auto-stop upon flash point detection
- Supports switching among Mode A, B and C

Mode A: Heating rate 5–6 °C/min; stirring speed 90–120 r/min, downward stirring
Mode B: Heating rate 1.0–1.5 °C/min; stirring speed 250±10 r/min, downward stirring
Mode C: Heating rate 2.5–3.5 °C/min; stirring speed 90–120 r/min, downward stirring

- Rated power: 500 W
- Overall dimension: 450 × 380 × 350 mm
- Net weight: 19 kg

Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

• The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;
• The materials and main components provided meet the technical requirements specified in the technical documentation;
• The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).
• We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.
• Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.
• After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
