| Brand Name: | Shengtai Instrument |
| Model Number: | SK107 |
| MOQ: | 1 |
| Payment Terms: | T/T |
| Supply Ability: | 100000sets/year |

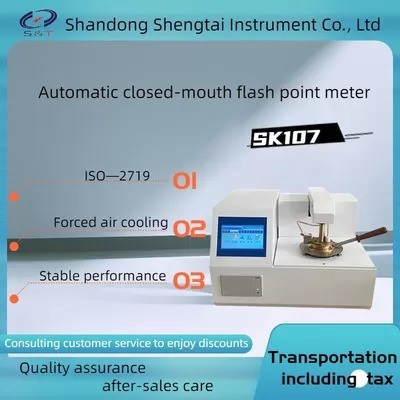

SK107 fully automatic closed flash point tester, domestically produced sensor, atmospheric pressure calibration
SK107 is a fully automatic closed-cup flash point tester, which is developed by centralized surgery. The instrument adopts microcomputer technology and large-screen LCD display. The instrument is heated up, automatically raised and lowered, automatically ventilated, and automatically ignited according to the standard method, without air source, automatic display, automatic locking of flash point value, and automatic printing of results. After the test, it can automatically cool down and realize the full automation of the working process. It has the advantages of accurate measurement, good repeatability, stable performance and simple operation. It is widely used in power, petroleum, chemical, commodity inspection, scientific research and other departments. Comply with ISO-2719 and GB261-83 standards.
Technical parameter
| Display | large screen full Chinese LCD module display. |
| Measurement range | room temperature~390 ℃ |
| Accuracy | ≥ 104 ℃± 2 ℃ ≤ 104 ℃± 1 ℃ |
| Executive standard | GB261-83 ISO-2719 |
| Cooling mode | forced air cooling |
| Repeatability | flash point ≤ 104℃, error ± 2 ℃ |
| Flash point ≥ 104 ℃ Error ± 4 ℃ | |
| Heating speed | Step A: Heating rate: 5 ~ 6℃/min |
| Power supply | AC 220V ± 22V 50Hz ± 2.5Hz |
| Power | 100VA |
| Operating ambient temperature | 10 ℃~35 ℃ |
| Operating ambient humidity | ≤ 85% |
| Overall dimension:410X260X300mm Weight:15kg | |
| Packaging size: 345 ×405× 525mm Packaging weight: 19kg | |
Packing List
| S/N | Name | Quantity | Unit | Remarks |
| 1 | Automatic closing flash point meter | 1 | set | |
| 2 | Oil cup | 1 | piece | |
| 3 | AC power cord | 1 | piece | |
| 4 | Printing paper | 1 | piece | |
| 5 | Operating instruction | 1 | piece | |
| 6 | packing list | 1 | copy | |
| 7 | Certificate of factory | 1 | copy |
