| Brand Name: | Shengtai Instrument |
| Model Number: | SK101 |
| MOQ: | 1 |
| Payment Terms: | T/T |
| Supply Ability: | 100000sets/year |

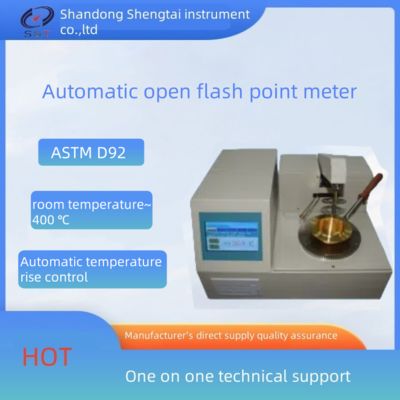

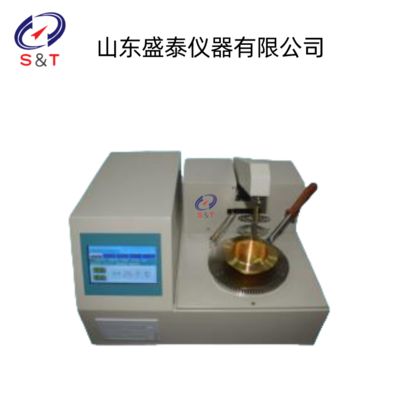

SK101 Automatic opening flash point meter with atmospheric pressure correction function and automatic ignition
The instrument adopts a large screen LCD, and the computer controls the whole process of the test. The instrument has automatic temperature rise control, automatic ignition and scanning, automatic detection of flash point locking results, printing of results, and automatic shutdown of gas source. The instrument has the advantages of accurate measurement, good repeatability, stable performance and simple operation. It is widely used in power, petroleum, chemical, commodity inspection, scientific research and other departments
Automatic open flash point tester for gear oil hydraulic oil turbine oil ASTMD 92 Cleveland open cup method
SK101 automatic open flash point tester This open flash point automatic tester is designed and manufactured in accordance with the provisions of the national standards GB267-88 and GB3536-83 open flash point determination method.
Technical indicators
| Display | large screen full Chinese LCD module display. |
| Measurement range | room temperature~400 ℃ |
| Heating speed |
in line with ASTM D92 standard; About Heating rate from 5 to 17 C per min |
| Accuracy | 0.1 ℃ |
| Repeatability | flash point ≤ 150 ℃, error ± 2 ℃ |
| Flash point ≥ 150 ℃ Error ± 4 ℃ | |
| Power supply | AC 220V ± 22V 50Hz ± 2.5Hz |
| Power | 100VA |
| Operating ambient temperature | 10 ℃~35 ℃ |
| Operating ambient humidity | ≤ 85% |
| Air source | no air source is required |
| Ignition mode | automatic ignition |
| Cooling mode | forced air cooling |
| Overall dimension:400×260×280mm Weight:15kg | |
