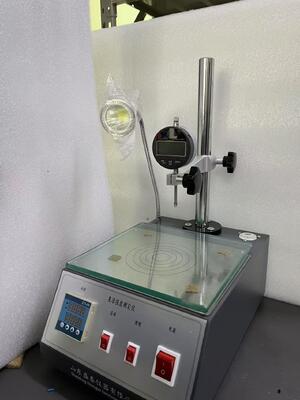

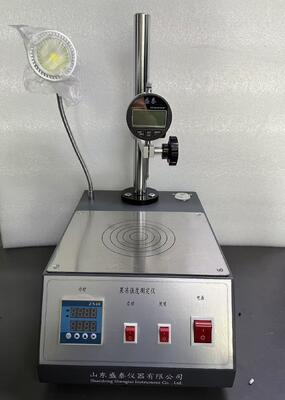

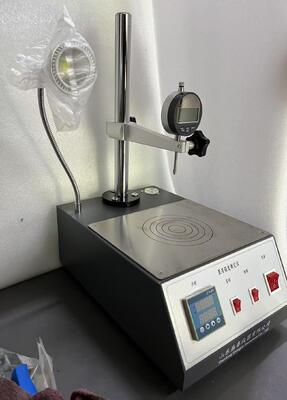

ST207 SAG Pectin Gel Strength Tester with Coarse and Fine Adjustment for Accurate Alignment and Easy Measurement

ST207 SAG Pectin Gel Strength Tester with Coarse and Fine Adjustment for Accurate Alignment and Easy Measurement

Brand Name: Shengtai Instrument
Model Number: ST207
MOQ: 1 carton
Payment Terms: T/T
Supply Ability: 10 cartons per week
Detail Information
Place of Origin:
China
Measuring Range::
0-79.8mm
Sag Accuracy::
0.01mm
Required Height Of Glass::
7.94 ± 0.1cm (standard Configuration 7.85cm)
Highlight:

SAG pectin gel strength tester

,

pectin tester with coarse adjustment

,

food testing instrument for gel measurement

Product Description

ST207 SAG Pectin Gel Strength Tester, Equipped with Coarse & Fine Adjustment for Precise Alignment and Convenient Measurement

Product Introduction

The ST207 Jelly Strength Tester is developed and manufactured in compliance with the pectin standard QB2484-2000. It is mainly applied to test jelly strength, also known as Pectin Gel Strength Tester (SAG).

Main Technical Features

  • Digital display for depression value, clear and straightforward reading.
  • Digitally controlled timer, adjustable from 0 to 99 minutes freely.
  • The lifting frame supports coarse and fine adjustment, enabling convenient adjustment and precise alignment of the probe.

Main Technical Specifications

  1. Measuring range: 0–79.8 mm
  2. Timer: Freely configurable as required; time error ≤ ±0.1 s
  3. Resolution: 0.01 mm
  4. Required glass height: 7.94 ± 0.1 cm (7.85 cm supplied as standard)
  5. Sag accuracy: 0.01 mm
  6. Lifting bracket: Dual lifting adjustment mechanism (coarse & fine adjustment), which helps align the standard rod with the sample surface accurately.

Packing list

No Name Unit Number
1 Instrument host   1
2 Standard Column
3 Standard glass   3
4 Fuse 5A(∮5*20)   1
5 Power cord (250V 6A)   1
6 instruction manual   1
7 Factory certificate card   1
