Intelligent Automatic Calibration Eggshell Color Tester Measure Whiteness Yellowness

Intelligent Automatic Calibration Eggshell Color Tester Measure Whiteness Yellowness

Brand Name: Shengtai Instrument
Model Number: ST-17
MOQ: 1
Payment Terms: T/T
Supply Ability: 10000sets/year
Detail Information
Place of Origin:
China
Measurement Structure:
D/8-SCI+SCE, (Diffuse Illumination, Receiving In 8 ° Direction), Including Specular Reflection Light Removal Specular Reflection Light)
Inter Station Difference:
ΔE*ab≤0.4
Display Accuracy:
0.01
Measuring/lighting Aperture:
Φ4mm
Measurement Indicators:
Spectral Reflectance,CIE-Lab,CIE-LCh,HunterLab,CIE-Luv,XYZ,Yxy,RGB, Chromatic Aberration (ΔE*ab,ΔE*cmc,ΔE*94,ΔE*00), Whiteness (ASTM E313-00,ASTM E313-73,CIE/ISO,AATCC,Hunter,TaubeBergerStensby), Yellowness (ASTM D1925,ASTM E313-00,ASTM E313-73), Blackness
Light Source Conditions:
A,B,C,D50,D55,D65,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12, CWF,U30,U35,DLF,NBF,TL83,TL84
Lighting Source:
LED
Measurement And Observation Method:
Visual
Calibration:
Intelligent Automatic Calibration
Software Support:
Windows
Accuracy Assurance:
Ensure That The First Level Measurement Is Qualified
Field Of View Angle:
2°,10°
Packaging Details:
wooden case
Highlight:

whiteness eggshell color tester

,

yellowness eggshell color tester

,

whiteness eggshell color testers

Product Description

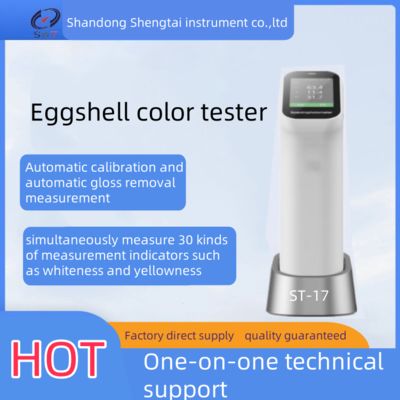

The eggshell color tester can measure whiteness, yellowness, etc. It can be intelligently and automatically calibrated



Intelligent Automatic Calibration Eggshell Color Tester Measure Whiteness Yellowness 0

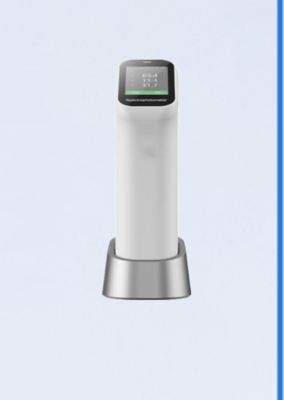

The ST-17 eggshell color tester adopts an automatic calibration method, with over 30 measurement parameters and 26 standard light sources; The eggshell color tester can be automatically calibrated and automatically removed for gloss measurement. It can also measure 30 measurement indicators such as whiteness and yellowness, with good repeatability and can be certified by the Institute of Metrology.



Eggshell colors include white, light brown, brown, dark brown, and cyan. Some people prefer red shell eggs, while others prefer green shell eggs, believing that they have higher nutritional value. The color of the egg shell comes from the final process of egg processing in the hen's reproductive tract - the pigment secreted by the uterine epithelium, such as egg porphyrin providing brown, and biliverdin providing green. The exact pigment secreted first depends on the genotype of the hen. Secondly, it depends on the acquired factors such as the diet and health of the hen. The age and health status of hens can also have a certain impact on egg shell color.



Technical parameters of eggshell color tester

Measurement structure D/8-SCI+SCE, (Diffuse illumination, receiving in 8 ° direction), including specular reflection light removal specular reflection light)
Measurement repeatability/stability Chromaticity value
Standard deviation valueΔE*ab≤ 0.04
average value:dE*ab≤ 0.05
Maximum:dE*ab≤ 0.08
(Measure the whiteboard 30 times at 5-second intervals after whiteboard calibration)
Inter station difference ΔE*ab≤0.4
Display accuracy 0.01
Measuring/lighting aperture Φ4mm
Measurement indicators Spectral reflectance,CIE-Lab,CIE-LCh,HunterLab,CIE-Luv,XYZ,Yxy,RGB,
chromatic aberration (ΔE*ab,ΔE*cmc,ΔE*94,ΔE*00), whiteness (ASTM E313-00,ASTM E313-73,CIE/ISO,AATCC,Hunter,TaubeBergerStensby), Yellowness (ASTM D1925,ASTM E313-00,ASTM E313-73), Blackness(My,dM)
Light source conditions A,B,C,D50,D55,D65,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12,
CWF,U30,U35,DLF,NBF,TL83,TL84
Lighting source LED
Measurement and observation method visual
calibration Intelligent automatic calibration
Software Support Windows
Accuracy Assurance Ensure that the first level measurement is qualified
Field of view angle 2°,10°
Integrating sphere diameter 40mm
Compliance with standards Compliance with standardsCIE No.15,GB/T 3978,GB 2893,GB/T 18833,ISO7724-1,ASTM E1164,DIN5033 Teil7
Spectroscopic method Integrated optics
sensor CMOS a sensor
Wavelength interval 10nm
Wavelength range 400-700nm
Reflectivity measurement range 0-200%
Reflectivity resolution 0.01%
Measurement time About 1 second
joggle USB
screen IPS Full color display, 2.4 inches
Battery capacity 8000 consecutive measurements per charge, 3.7V/3000mAh
Light source lifetime 1 million times in 10 years
language Simplified Chinese, English
storage 100 standard samples





Product Packing List



S/N Name Quantity Unit remarks
1 Host 1 Set
2 Whiteboard holder 1 piece
3 Power cord 1 piece
4 Fuse tube 1 piece In the safety seat 10A
5 instruction manual 1 Copy
6 Certificate of Conformity Warranty Card 1 copy
