| Brand Name: | Shengtai Instrument |
| Model Number: | SH707 |
| MOQ: | 1 |
| Payment Terms: | T/T |
| Supply Ability: | 2000sets/year |

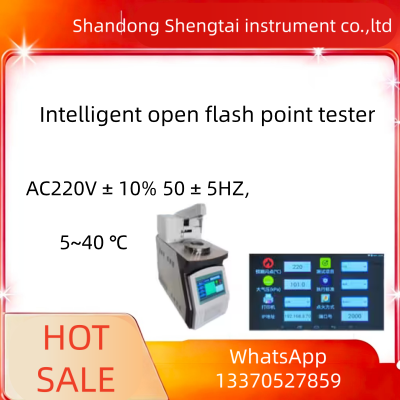

SH707 High Precision Android Flash Point Tester with Remote Control for Oil Testing
The SH707 smart open flash point analyzer integrates microcontroller control with an Android operating system, paired with a large LCD touch display. This testing unit delivers fully unmanned operation: auto heating, automated lifting of the test arm, electronic ignition, real-time data readout, flash point value auto-lock, and compliant printed test reports. It features an automatic post-test cooling cycle to complete the entire testing workflow without manual intervention. It serves quality control teams across power plants, oil refineries, chemical factories, third-party inspection agencies and research labs, and meets testing standards GB267-1988, GB3536-2008 and ASTM D92.
Features:
● 7-inch color touch screen, human-computer dialogue interface in full Chinese, keyboard without logo
● Android operating system, internet access, download, LAN control
● It can connect mobile phone software for remote operation control, real-time synchronization and data export
● Automatically detect the atmospheric pressure and correct the influence of atmospheric pressure on the test and calculate the correction value.
● Detection method: differential detection of detection loop
● The ignition, detection and printing data are automatically completed, and the test arm automatically rises and falls.
● Electronic ignition, forced air cooling, automatic ignition without air source.
● Flash point and ignition point of test sample, one machine for two purposes
● Printer: equipped with micro printer
● Historical data: a single machine can store 1000 pieces of data
● Air pressure detection device: it is equipped with air pressure detection device to automatically correct atmospheric pressure.
● It can automatically ignite without air source, which improves the safety of the test.
● Clock display (power down hold)
● Excel form can be exported via mobile phone, stored in computer for a long time, and data can be saved indefinitely
Technical parameter:
| Temperature range | room temperature+5 ℃ - 400 ℃ |
| Temperature measurement | PT100 platinum resistance (Class A) |
| Accuracy | ± 2 ℃ |
| Resolution | 0.1 ℃ |
| Repeatability | ≤ 4 ℃ |
| Display mode | large screen color LCD display |
| Operating system | Android system |
| Data capacity | 1G |
| Ignition mode | electric ignition |
| Cooling mode | built-in strong air cooling forced air cooling |
| Printer | thermal, Chinese characters, 40 lines |
| Self-inspection function | test head, mixer, cover, fan, igniter |
| Power consumption | <500W |
| Working voltage | AC220V ± 10% 50 ± 5HZ, |
| Applicable ambient temperature | 5~40 ℃ |
| Applicable ambient humidity | 30-80% |
| Printer | thermal sensitive, 36 characters, Chinese character output |
| Overall dimension:490 × 250 × 460 Weight: 22Kg (reference) | |
| Package size: 550mm × 330mm × 550mm Weight: 25Kg (reference) | |
S/N |
Name |
Quantity |
Unit |
Remarks |
1 |
Host |
1 |
set |
|
2 |
Sample cup |
1 |
Piece |
|
3 |
Wifi antenna |
1 |
Piece |
|
4 |
Power cord |
1 |
Piece |
|
5 |
Safety tube |
2 |
piece |
10A |
6 |
Printing paper |
2 |
roll |
|
7 |
Instruction manual |
1 |
Copy |
|
8 |
certificate |
1 |
Copy |
|
9 |
Packing list |
1 |
copy |
|
