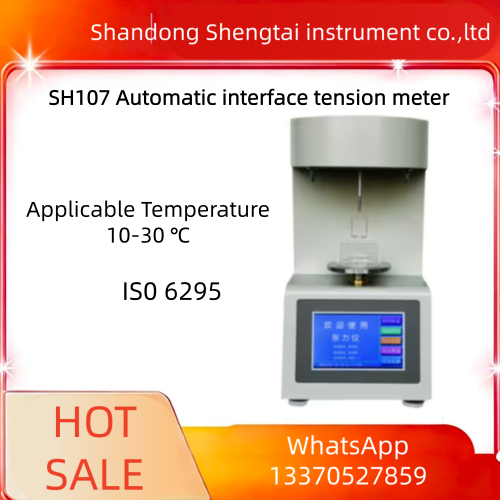

SH107 Auto Interfacial Tester Platinum Ring 0.1mN/m Precision Temp Calibration for Oil Liquid Testing

SH107 Auto Interfacial Tester Platinum Ring 0.1mN/m Precision Temp Calibration for Oil Liquid Testing

  Model SH107 fully automatic interfacial tensiometer is fabricated in compliance with GB/T6541 standards. It applies the platinum ring testing method to gauge surface tension of all kinds of liquids at liquid-gas boundaries, as well as the oil-water interfacial tension between mineral oil and pure water under non-equilibrium testing environments. Built around a single-chip control unit, the device runs with high automation levels and steady, trouble-free performance, and the operation workflow is straightforward. Once you pour the sample liquid into the measuring cup, just tap the start key, and the equipment will run the full measurement cycle independently, then work out the tension reading with the custom parameters you entered earlier.

  To explain interfacial tension clearly: Oil-water interfacial tension stands for the surface force formed where petroleum products meet pure water that cannot mix together, with the unit mN/m. For power system insulating oils, the interfacial tension people usually mention specifically refers to the tension between oil and water layers, shorted as oil product interfacial tension.

Equipped with a single-chip control core and a large LCD display screen, the machine features a neat, compact look. It delivers outstanding measuring precision and consistent repeatability during repeated tests. All custom parameter settings remain stored even after unexpected power cuts, and a built-in temperature compensation function is available. It is widely adopted to test interfacial tension indicators for finished goods and production lines across power generation, petrochemical, chemical manufacturing and railway sectors.

Technical Parameter

● Display system: Large screen LCD display interface tension

● Measurement method: Circular ring method (GB/T6541-86)

● Measurement range: 2-200mN/m

● Movement speed: Fast: 1mm/S Slow speed: 0.3-0.4mm/S

● Sensitive valve: 0.1mN/m

● Applicable temperature: 10-30 ℃

● Temperature adaptation: ≤ 80%

● Power supply: AC 220V ± 5%, 50Hz

● Power consumption: 20VA

● Instrument size: 330 * 220 * 355mm

● Instrument weight: 8.2kg

● Packaging size: 425 * 315 * 455mm

● Packaging weight: 11kg cardboard box

Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.

Packing List

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.

  Unlike most domestic manufacturers that only adhere to domestic standards, Shengtai Instruments optimizes its product design and supporting services for the global market:
Comprehensive coverage of multiple standards: The core products simultaneously meet the standards of various countries such as China's GB and the United States' ASTM, and the test results are recognized in the global oil trade scenarios.
