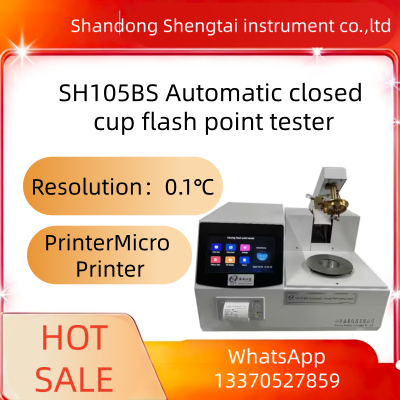

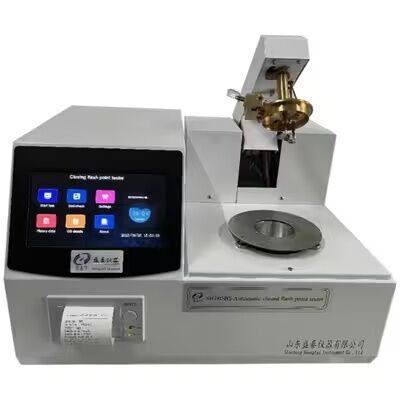

SH105BS Automatic Closed Cup Flash Point Tester ASTM D93 Electronic Ignition Pressure Correction
PRODUCT DESCRIPTION
Powered by microcomputer technology and fitted with a large LCD display, the SH105BS automatic closed cup flash point tester delivers fully automated operation. It heats samples in strict accordance with standard test methods, and handles test arm lifting, ignition, real-time data display, flash point value locking and result printing all on its own. After each test run, it initiates cooling automatically, so the entire testing workflow runs completely hands-off from start to finish.
It is widely used in electric power, petroleum, chemical manufacturing, commodity inspection, scientific research and other sectors, and complies with ISO 2719, ASTM D93 and GB/T 261-2021 standards.
Flash point
Under the specified test conditions, the test flame causes the sample vapor to fire and spread the flame to the lowest temperature on the liquid surface to 1013 kPa atmosphere.
Compliance with standard: GB/T 261-2021 ASTM D93
High Precision Petroleum Products Pensky-Martens Closed Cup Flash Point Tester
Flash Point Apparatus with Closed Cup Testing Method
Pensky-Martens Closed Cup Flash Point Tester
Pensky Martens Closed Cup Flash Point Tester ASTM D93 Standard
Technical performance parameters
● Using color LCD large screen display, full Chinese man-machine dialogue interface, no logo keyboard
● Automatically detect atmospheric pressure and correct the influence of atmospheric pressure on the test and calculate the correction value.
● Opening opening, ignition, detecting and printing data are automatically completed, and the test arm automatically rises and falls.
● Electronic ignition, forced air cooling, no gas source, automatic ignition.
●Automatic ignition of the air source is not required to improve the safety of the test.
| Temp measurement range | RT ～ 370℃ |
| Accuracy | ≥ 104℃, ± 2℃; ≤ 104℃,± 1℃ |
| Resolution | 0.1℃ |
| Precision | 0.5% |
| Printer | Micro printer |
| Pressure detection device | Equipped with a built-in pressure detection device, it automatically corrects atmospheric pressure. |
| Base parameter | Heating rate in accordance with GB/T261-2021 standard |
| Ignition method | automatic electronic ignition, automatic end stop |
| It has the function of converting steps A, B, and C. | |
| Mode A | Heating rate: 5℃ ～ 6℃/min; Mixing rate: 90r ～ 120r/min; Stir downwards. |
| Mode B | Heating rate: 1.0℃ ～ 1.5℃/min; Mixing rate: 250 ± 10r/min; Stir downwards. |
| Mode C | Heating rate: 2.5℃ ～ 3.5℃/min; Mixing rate: 90r ～ -120r/min; Stir downwards. |
| Rated power | 500W |
| Dimensions | 450 × 380 × 350mm |
| Instrument weight | 19kg |
Note: The appearance pictures, dimensions, volume and weight of the instrument are for reference only. If there are any updates to the instrument, they may be slight changes without prior notice.
Packing list
| S/N | Name | Quantity | Unit | remarks |
| 1 | Host | 1 | Set | |
| 2 | Oil cup | 1 | Piece | |
| 3 | AC power cable | 1 | Piece | |
| 4 | Printer paper | 1 | Piece | |
| 5 | Instruction manual | 1 | Piece | |
| 6 | Packing list | 1 | Copy | |
| 7 | Certificate of qualification | 1 | Copy |
Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:
----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;
----The materials and main components provided meet the technical requirements specified in the technical documentation;
----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).
----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.
----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.
----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
Unlike most domestic manufacturers that only adhere to domestic standards, Shengtai Instruments optimizes its product design and supporting services for the global market:
Comprehensive coverage of multiple standards: The core products simultaneously meet the standards of various countries such as China's GB and the United States' ASTM, and the test results are recognized in the global oil trade scenarios.
