| Brand Name: | Shengtai Instrument |
| Model Number: | SH407 |
| MOQ: | 1 |
| Payment Terms: | T/T |
| Supply Ability: | 100000sets/year |

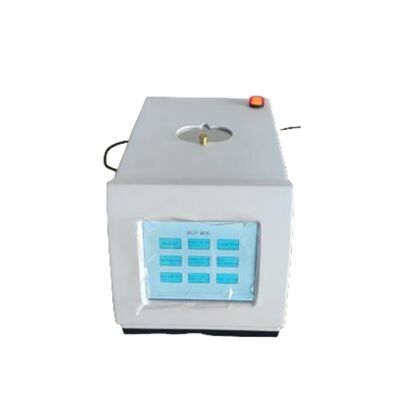

The SH407 X-ray Fluorescence Sulfur Analyzer utilizes the energy-dispersive principle with an electromechanical integrated microcomputer structure, enabling fast and accurate analysis. It complies with ASTM D4294, the standard test method for sulfur content in petroleum products by energy-dispersive X-ray fluorescence spectrometry.
Its repeatability and reproducibility conform to the relevant specifications of national standards GB/T 17040-2008 Determination of Sulfur Content in Petroleum Products (Energy-Dispersive X-ray Fluorescence Spectrometry) and GB/T 11140-1989 Determination of Sulfur Content in Petroleum Products (X-ray Spectrometry), and fully meet the requirements of ASTM D4294-02.
For many years, X-ray fluorescence sulfur analyzers have been the preferred choice in the petroleum industry. Ongoing enhancements in performance and operability allow us to provide an improved instrument that meets your practical demands. Our XRF sulfur analyzers comply with ASTM D4294, and represent a highly cost-effective solution for the determination of sulfur in petroleum products.
The SH407 Fluorescence Sulfur Analyzer is mainly used to measure the total sulfur mass percentage in crude oil, petroleum, heavy oil, diesel fuel, kerosene, gasoline and naphtha. It can also determine total sulfur or sulfur compounds in coal chemical products (such as crude benzene) and other liquid samples.
In addition, it can be applied to determine total sulfur or SO₃ content in fine powder samples.
I. Main technical features
1. Adopting the fluorescence intensity ratio analysis method, the detection variety is wide, the detection range is wide, the analysis speed is fast, and the consumption of the standard sample is small.
2.the use of mechanical and electrical integrated microcomputer design, liquid crystal display, man-machine interface dialogue, with automatic diagnosis function, to judge the working state of the instrument and electrical parameters, temperature, air pressure automatic correction, carbon hydrogen ratio (C/H) can also be corrected.
3. Use disposable Mylar sample cup to avoid cross contamination.
4. safe X-ray protection measures, after strict testing, no X-ray power radiation damage to individuals and groups.
II. Main technical parameters and indicators
| Standard | ASTMD4294-02. |
| Sulfur measurement range: | 10ppm ~ 5% |
| Sample size | (2 ~ 3) mL (equivalent to the sample depth of 3mm ~ 4mm). |
| measurement time | 60 seconds, 120 seconds, 240 seconds, 300 seconds, 600 seconds, arbitrary setting. |
| Number of calibration curves | the instrument can store 9 calibration curves, 5 of which are one-dimensional linear lines and 4 of which are binomial parabolas. |
| Calibration (calibration) samples | 11 (10ml/ piece). |
| Sample measurement | single sample automatic measurement, measurement times 2, 3, 5, 10 and 50 times can be set arbitrarily, and the average value and standard deviation will be given after measurement. |
| Precision: |
a: repeatability (r): ＜ 0.02894 (X+0.1691);
b: Reproducibility (R): ＜ 0.1215 (X+0.05555). |
| Working power supply: | AC220V ± 20V, 50Hz; |
| Overall dimension: 620mm × 530mm × 400mm Weight: 30kg (net weight). | |
Packing list
| S/N | Name | Quantity | unit |
| 1 | X Fluorescent oil sulfur analyzer host | 1 | set |
| 2 | Three-core power cord | 1 | piece |
| 3 | Sample cup | 200 | piece |
| 4 | Sample cup film | 2 | Set(100 sheets/box) |
| 5 | Oil leak-proof parts (two pieces and one set) | 1 | set |
| 6 | Multi-functional press parts (two pieces and one set) | 1 | set |
| 7 | Printer paper | 2 | piece |
| 8 | Calibration (calibration) of standard samples | 1 | set |
