| Brand Name: | Shengtai Instrument |
| Model Number: | SK101 |
| MOQ: | 1 |
| Payment Terms: | T/T |
| Supply Ability: | 100000sets/year |

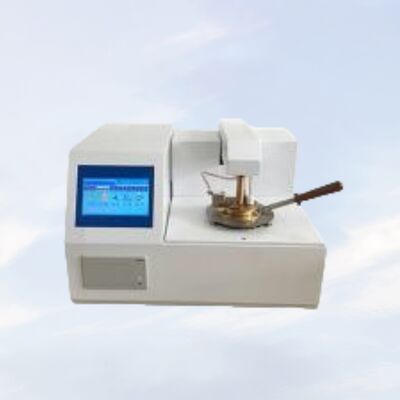

The SK101 Automatic Open-Cup Flash Point Tester is equipped with an atmospheric pressure correction function and an automatic ignition system.
Featuring a large-screen LCD display, the instrument is fully computer-controlled throughout the entire testing process. It integrates a host of automated functions, including automatic temperature rise control, automatic ignition and scanning, automatic flash point detection and result locking, result printing, and automatic gas supply shutdown. Boasting high measurement accuracy, excellent repeatability, stable performance, and simple operation, this tester is widely used in power, petroleum, chemical, commodity inspection, scientific research and other sectors.
Automatic open flash point tester for gear oil hydraulic oil turbine oil ASTMD 92 Cleveland open cup method
SK101 automatic open flash point tester This open flash point automatic tester is designed and manufactured in accordance with the provisions of the national standards GB267-88 and GB3536-83 open flash point determination method.
Technical indicators
| Display | large screen full Chinese LCD module display. |
| Measurement range | room temperature~400 ℃ |
| Heating speed |
in line with ASTM D92 standard; About Heating rate from 5 to 17 C per min |
| Accuracy | 0.1 ℃ |
| Repeatability | flash point ≤ 150 ℃, error ± 2 ℃ |
| Flash point ≥ 150 ℃ Error ± 4 ℃ | |
| Power supply | AC 220V ± 22V 50Hz ± 2.5Hz |
| Power | 100VA |
| Operating ambient temperature | 10 ℃~35 ℃ |
| Operating ambient humidity | ≤ 85% |
| Air source | no air source is required |
| Ignition mode | automatic ignition |
| Cooling mode | forced air cooling |
| Overall dimension:400×260×280mm Weight:15kg | |
