ASTM D93 Pensky Martens Closed Cup Flash Point Tester For Petroleum

Name: ASTM D93 Pensky Martens Closed Cup Flash Point Tester For Petroleum
Brand: Shandong Shengtai instrument co.,ltd
SKU: SH105B
Price: 4257 USD
Availability: InStock

Brand Name:	shengtai Instrument
Model Number:	SH105B
MOQ:	1
Price:	4257dollar
Payment Terms:	T/T
Supply Ability:	10000sets/year

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ASTM D93

Working Power Supply:

AC220V±10%， 50Hz

Temperature Measurement:

Heating Speed: In Line With GB/T261-2008 Standard; Step A: Heating Rate: 5 ~ 6℃/min Step B: Heating Rate: 1.0 ~ 1.5℃/min Ignition Mode: Electronic Ignition;

Base Parameters:

Heating Speed: In Line With GB/T261-2008 Standard; Step A: Heating Rate: 5 ~ 6℃/min Step B: Heating Rate: 1.0 ~ 1.5℃/min Ignition Mode: Electronic Ignition;

Stirrer: Electric Stirring Device:

(1) 90 ~ 120 RPM, Suitable For Test Step A. ⑵ 250±10 RPM, Suitable For Test Step B.

Ambient Temperature:

(10~40) ℃; Relative Humidity: ≤ 80%;

Power Consumption Of The Whole Machine:

Not More Than 500W.

Instrument Size:

Overall Size: 430 * 380 * 520 (mm), About 15kg

Packaging Details:

wooden case

Highlight:

D93 pensky martens closed cup flash point tester

ASTM pensky martens closed cup flash point tester

Petroleum pensky martens closed cup flash point apparatus

Product Description

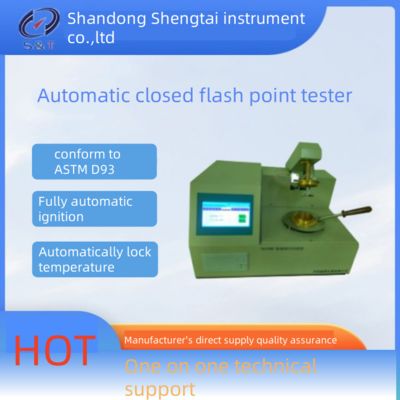

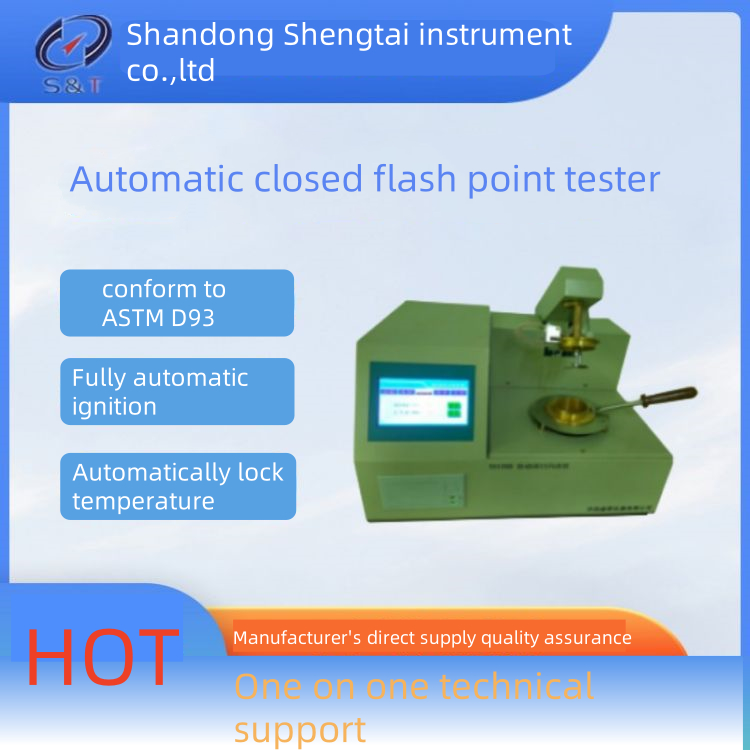

ASTM D93 Pensky-Martens Closed Cup Flash Point Tester for Petroleum

The SH105B closed flash point automatic tester is a scientifically developed product featuring microcomputer technology and large LCD display. This instrument automatically performs heating, ventilation, ignition, display, flash point value locking, and result printing according to standard methods. After testing, it automatically cools, achieving full automation of the work process with accurate measurement, excellent repeatability, stable performance, and simple operation.

Key Applications

Widely used in power, petroleum, chemical, commodity inspection, and scientific research departments. Complies with ISO-2719, ASTM D93, and GB261-2008 standards for liquid petroleum asphalt flash point testing (Tag closed cup method).

Pensky-Martens Closed-Cup Flash Point Tester for Oil Testing ASTM D93 Closed Cup Flash Point Tester for Diesel Fuel ASTM D93 Pensky-Martens Portable Oil Closed Cup Flash Point Test Closed-Cup Flash Point Tester for Petroleum Products (Pensky-Martin method)

Instrument Features

Color LCD screen with full Chinese interface and menu-oriented input for parameters
Displays temperature rise and test time function curves with error prompts
RS-323/485 computer interface with 120 sets of historical data storage
Automatic atmospheric pressure correction and calculation
Computer operation with Chinese prompts and automatic report printing
Fully automated testing process including lid opening, ignition, and arm movement
Electronic ignition with forced air cooling (no air source required)
Enhanced safety with automatic ignition system

Technical Specifications

Attribute	Value
Working power supply	AC220V±10%, 50Hz
Temperature measurement	Range: Room temperature ~ 390℃ Accuracy: ≥104℃±2℃ ≤104℃±1℃ Resolution: 0.1℃
Base parameters	Heating speed compliant with GB/T261-2008 standard Step A: 5-6℃/min Step B: 1.0-1.5℃/min Electronic ignition
Stirrer	Electric stirring device 1) 90-120 RPM (Test step A) 2) 250±10 RPM (Test step B)
Ambient conditions	Temperature: 10-40℃ Relative humidity: ≤80%
Power consumption	≤500W
Dimensions & Weight	430 × 380 × 520 mm (approx. 15kg)
