| Brand Name: | Shengtai Instrument |
| Model Number: | SH113E |
| MOQ: | 1 |
| Payment Terms: | T/T |
| Supply Ability: | 10000sets/year |

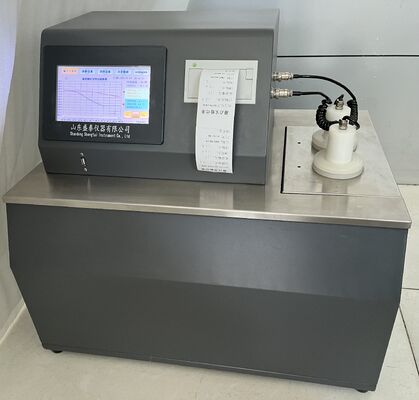

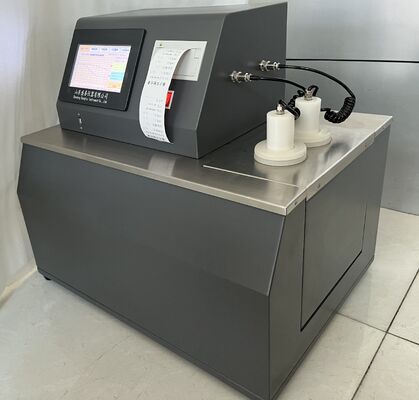

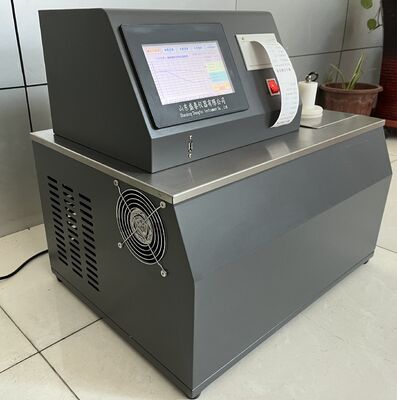

The SH113E automatic foam extinguishing agent freezing point tester is designed and manufactured in accordance with the Chinese national standard GB 15308-2006 Foam Fire Extinguishing Agents. It adopts a main control unit built with multiple single-chip microcomputers, featuring automatic refrigeration, automatic constant temperature control, automatic detection and automatic result printout.
Equipped with a two-stage refrigeration system, it provides a cooling range from +30℃ to -70℃, suitable for testing samples with freezing points above -55℃. Fitted with an imported Danfoss compressor from Germany, it delivers stable, reliable long-term operation with low failure risk.
It uses a dry-trap cold bath chamber, which features low temperature lag and fast cooling. No extra cooling medium is required, bringing convenient operation and maintenance.
High-performance infrared detection technology is applied to achieve high detection sensitivity and excellent reliability.
Two, meet the standard: GB15308
1. Upgraded to 7-inch TFT color LCD display;
2. Refrigeration mode: fully enclosed and efficient refrigeration compressor.
3. Cold trap for test: 2.
4, detection method: imported photoelectric switch detection
5, after the upgrade can store historical data, convenient query;
At the same time can be equipped with U disk output function.
6, standard micro printer automatic measurement automatic printing
7. After the completion of the test, if there is no personnel to operate, set the automatic closing time of the refrigerator within 0-50min to avoid frequent opening of the compressor and prolong the service life of the instrument.
8, with date password setting function.
9, standard micro printer automatic measurement automatic thermal printing
10, with TCP network transmission function
11. Can upload and connect to LIMS system
12. Memory can be expanded to 16G
Technical parameters:
| Meet the standard | GB15308 |
| Number of test holes | double holes |
| Temperature range | +30℃ ~ -70℃ |
| Temperature control accuracy |
< ±0.3℃
|
| Refrigeration medium | metal bath refrigeration |
| Detection of freezing point | infrared detection |
| Instrument size: 650 * 480 * 620mm Instrument weight: 75kg | |
| Package size: 690 * 520 * 660 Package weight: 80kg | |
| Human-machine interface | 7 inch color LCD touch |
| Printer | a small thermal printer |
| Power supply | AC220 V 50Hz |
| Detection method | imported photoelectric switch detection |
| Storage | 199 sets of historical data can be stored for easy query; |
| Result output | at the same time can be equipped with U disk output function, output to the PC for long-term storage |
| Output format | The output format of the result USB flash disk is CSV or EXCEL. |
| Data extension | laser printer interface, can be linked to HP1108 laser printer (optional). |
| Data protection | with date password setting function. |
| Standard printing |
standard micro printer automatic measurement automatic thermal printing
|
| Remote upgrade | with TCP network transmission function, can be later software remote upgrade |
| Data management | can connect to the |
| Data memory | microcomputer instrument memory can be expanded to 16 gigabytes. |
Packing list of automatic freezing point instrument
| S/N | Name | Quantity | Unit | Remarks |
| 1 | Host | 1 | set | |
| 2 | Condensation point glass tube | 2 | set | Including inner tube and outer tube |
| 3 | Freezing point thermometer | 2 | piece | |
| 4 | power cord | 1 | piece | |
| 5 | Fuse tube | 1 | piece | |
| 6 | instruction manual | 1 | copy | |
| 7 | Packing list | 1 | copy | |
| 8 | Certificate warranty card | 1 | copy |
