| Brand Name: | Shengtai Instrument |
| Model Number: | SD262A |
| MOQ: | 1 |
| Payment Terms: | T/T |
| Supply Ability: | 7000sets/year |

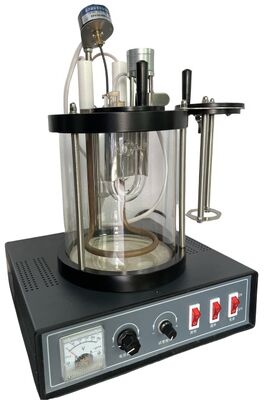

SD262A Petroleum Aniline Point Tester PID Precise Temp Control for Light & Dark Oil Aniline Point Test
SD262A petroleum aniline point tester is engineered in compliance with national standard GB/T262 specifications. This lab equipment is applied to test the aniline‑point value of both light‑hued and dark‑toned petroleum samples.
Alternative Titles
Key Technical Advantages
| Temperature Control Range: | Room Temperature to 200ºC |
| Temperature control accuracy: | ≤0.5℃ |
| Motor power | 6W |
| Heating power: | 2KW |
| Stirring speed : | (0~1200)RPM |
| Temperature range | Ambient to 200℃ |
| lighting power supply: | 5V |
| Saltwater tank capacity: | 15L |
| Working power supply: | AC 220V ±10%, 50HZ |
| Dimension | 320*380*490 12kg |
| Packing size | 450*420*550 16kg |
| No. | Name | Unit | Quantity | Remark |
| 1 | Main unit | Set | 1 | |
| 2 | Thermometer | Piece | 1 | 25 to 105 ºC, scale division is 0.2 ºC; |
| 3 | Thermometer (2#) | Piece | 1 | 90 to 170 ºC, scale division is 0.2 ºC; |
| 4 | U type tube (For heavy oil) | Piece | 1 | |
| 5 | Metal shield (For heavy oil) | Piece | 1 | |
| 6 | Illumination bulb assembly (For heavy oil) | Piece | 1 | |
| 7 | Seat 2 for test device (For heavy oil) | Piece | 1 | With stirring motor assembly |
| 8 | Glass test tube (For heavy oil and light oil) |
Piece | 2 | Φ25 |
| 9 | Glass casing tube (For light oil) | Piece | 1 | Φ40 |
| 10 | Cork 1# (For light oil) | Piece | 1 | Hole ofΦ25 |
| 11 | Cork 2# (For light oil) | Piece | 1 | With a hole ofΦ9 and hole for stirring rod |
| 12 | Cork 3# | Piece | 1 | |
| 13 | Stirring rod (For light oil) | Piece | 1 | |
| 14 | Silica gel stopper (8#) | Piece | 1 | |
| 15 | Seat 1 for testing device (For light oil) | Piece | 1 | |
| 16 | Stopping ring for thermometer (2#) | Piece | 2 | |
| 17 | Fuse (Φ5*20,15A) | Piece | 2 | |
| 18 | Power supply(250V 10A) | Piece | 1 |
(1) Operation Manual 1 piece
(2) Repair Guarantee 1 piece
(3) Quality Certificate 1 piece
