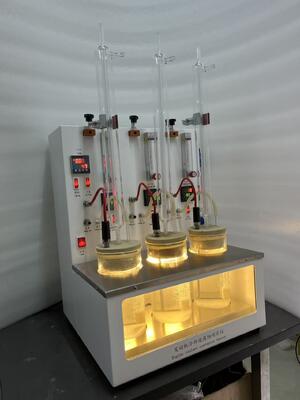

SH0085B Hot‑Plate Engine Coolant Corrosion Tester ASTM D1384 Coolant Metal Corrosion Performance Testing
SH0085B Antifreeze Corrosion Tester is designed and manufactured complying with China petrochemical industry standard SH/T0085, Test Method for Corrosion of Engine Coolants. It is used to determine the corrosion extent of high-boiling and low-boiling engine coolants and their concentrates on typical metal specimens, in accordance with SH/T0085 and ASTM D1384.
This upgraded SH0085B corrosion tester comes with a built-in silent air compressor, eliminating the need for an external manual air supply.
The SH0085B Engine Coolant Corrosion Tester is an upgraded version of the previous model. It allows real-time observation of the test status during operation. The instrument adopts an electric heating plate for heating, and no heating medium is required.

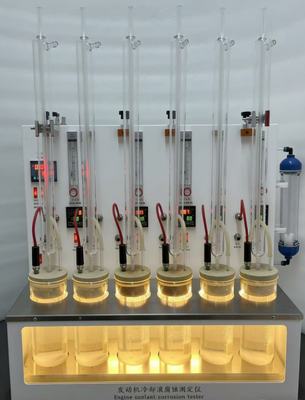

ASTM D 1384 Engine Coolant Corrosion Tester with 6 Holes
Main technical specifications and parameters
| Heating method | electric plate heating |
| Beaker | made of heat-resistant glass. High-type mouthless 1000ml, conforming to SH/T0085 standard |
| Gas diffusion pipe | the diffusion head is made of sand-cored glass, and the pipe diameter is made of heat-resistant glass. |
| Reflux condensate pipe | water-cooled type, with the length of sleeve not less than 400mm. |
| Temperature control range | room temperature+100 ℃ ± 0.1 ℃ |
| Air flow meter: flow range | 30~300ml/min |
| Timer | timing range 0~9999 h |
| Number of test holes | 3 |
| Working power supply | AC220V ± 10%, 50Hz. |
| Ambient temperature | - 10 ℃~+35 ℃. |
| Relative humidity | ≤ 85%. |
| Power consumption of the whole machine | no more than 2000W. |
| Instrument size: 550 * 370 * 480mm Weight: 28kg | |
| Package size: 620 * 420 * 450mm Weight: 34kg | |
Test piece size and material:
SH/T0085 Engine Coolant Corrosion Test Method (Glassware Method) Group Test Piece
50x20x2mm (20 # steel, brass sheet, red copper sheet)
50x25x3.5mm (cast aluminum sheet, solder sheet, cast iron sheet)
Single center hole: φ 7.0mm
Supporting products:
Brass washer, insulating washer, steel washer, insulating sleeve, brass bracket
Instrument size: length 35 * width 37 * height 48cm Weight: 28kg
Packing list
| S/N | Name | Quantity | Unit | Remarks |
|---|---|---|---|---|
| 1 | Host | 1 | set | |
| 2 | Power cord | 1 | piece | |
| 3 | Corrosion test piece | 3 | group | |
| 4 | Condenser tube | 3 | group | |
| 5 | Gas diffusion tube | 3 | group | |
| 6 | Fuse tube | 1 | piece | |
| 7 | Instruction | 1 | Copy | |
| 8 | Certificate warranty card | 1 | copy |
