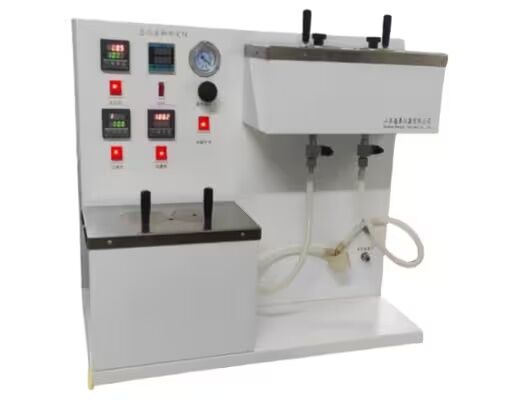

Residual Fuel Oil Total Sediment Content Determination Tester ASTM D4870

Residual Fuel Oil Total Sediment Content Determination Tester ASTM D4870

SH0702 Residual Fuel Oil Total Sediment Determination Instrument, designed and manufactured in accordance with SH/T0701 and SH/T0702 "Residual Fuel Oil Total Sediment Determination Method (Aging Method, Hot Filtration Method)" standards and ASTM D4870. This method is applicable for determining the total sediment in residual fuel oil with a viscosity of less than 55mm2/s at 100 ℃ and distillate fuel oil containing residual components.

This instrument is suitable for total sediment in residual fuel oil and distillate fuel oil containing residual components.

Product Features

• Equipped with a dedicated aging bath;
• Standard filter elements with heating and cooling coils;
• Glass fiber filter paper with a pore size of 0.0016mm and a diameter of 47mm;
• Stainless steel ball valve switches between heat and cold sources;
• Digital time relay controls the working time;
• Microcomputer PID temperature controller, PT100 temperature sensor, high temperature control accuracy;

Technical Parameter

• Test sample: 25g
• Waste flask capacity: 500ml
• Test range: 0.5% (m/m)
• Test position: 2 units
• Filter paper aperture: 0.0016mm
• Filter paper diameter: 47mm
• Vacuum pressure: 40kPa
• Applicable standards: SH/T0701 SH/T0702 ASTM D4870
• Working power supply: AC220V 50HZ
• Overall power: 1000W
• Instrument size: 570 * 600 * 650mm
• Net weight: 36KG

Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

• The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;
• The materials and main components provided meet the technical requirements specified in the technical documentation;
• The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).
• We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.
• Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.
• After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.

Packing list

Optional accessories:

• Electronic balance (one ten thousandth)
• Drying oven
• Glass dryer (with silica gel desiccant)
• Wash the bottle or syringe with a scale of 25ml
• Mixing rod glass and glass beaker 30ml
• High speed mixer 400r/min
• Weighing bottle or dish
• Glass fiber filter paper
