| Brand Name: | Shengtai Instrument |
| Model Number: | SH0085 |
| MOQ: | 1 carton |
| Payment Terms: | T/T |
| Supply Ability: | 10 cartons per week |

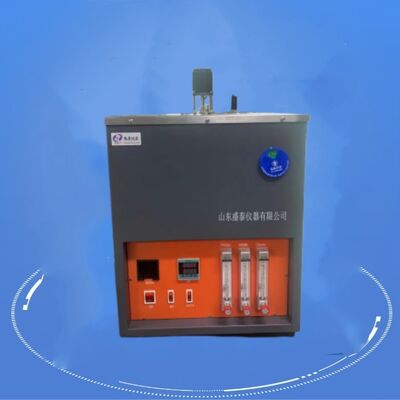

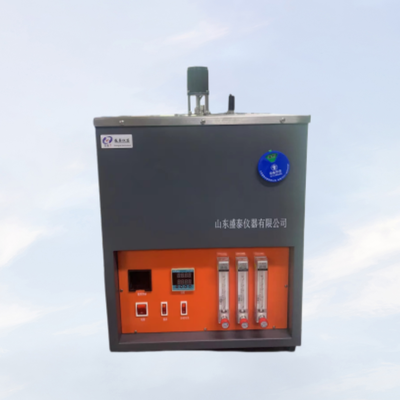

SH0085 Engine coolant corrosion tester
SH0085 Antifreeze Corrosion Tester is designed and manufactured in accordance with China petroleum and chemical industry standard SH/T 0085, Test Method for Corrosion of Engine Coolants. It is used to determine the degree of corrosion on typical metal specimens caused by high-boiling and low-boiling engine coolants and their concentrates following the test method specified in SH/T 0085. This upgraded SH0085 corrosion tester is equipped with a silent air compressor, eliminating the need for an external manual air supply.
ASTM D1384 Engine Coolant Corrosion Tester
ASTM D1384 Antifreeze Coolant Corrosion Tester
Engine Coolant Corrosiveness Tester
Coolant Corrosion Testing Equipment ASTM D1384
ASTM D1384 Coolant Corrosion Tester
Main technical specifications
Heating method: Electric heating tube
Timing: Digital timer display
Total power: 2.5 kW
Flow rate (adjustable via flowmeter): 100 mL/min ±10 mL/min
Gas diffusion head: sintered glass (sand core glass)
Simultaneously runs 3 sets of tests
Test beaker: Heat-resistant glass, high type, nozzle-free, 1000 mL, complies with SH/T 0085 requirements
Gas diffusion tube: Diffusion head made of sintered glass; tube body of heat-resistant glass
Reflux condenser: Water-cooled type, sleeve length ≥ 400 mm
Technical parameters
| No. | Tech Indicator | Description |
| 1 | Power | AC220V±10% 50Hz |
| 2 | the power consumption of the whole machine |
not more than 2000W. |
| 3 | Temperature Control Range | room temperature ~+100℃ ±0.1℃ |
| 4 | Constant Temperature Precision | ±0.2℃ |
| 5 | Ambient temperature | -10℃~+35℃. |
| 6 | Relative humidity | ≤85%. |
| 7 | air flow meter | flow range of 30~300ml/min |
| 8 | timer | timing range 0~ 9999h |
| 9 | Package size: 430 * 420 * 450mm Weight: 34kg | |
| 10 | Instrument size: 350 * 370 * 480mm Weight: 28kg | |
Sample size and material:
Packing list
| S/N | Name | Quantity | Unit | Remarks |
| 1 | Host | 1 | set | |
| 2 | power cord | 1 | piece | |
| 3 | Corrosion test piece | 3 | set | |
| 4 | Condenser tube | 3 | set | |
| 5 | Gas diffusion tube | 3 | set | |
| 6 | Fuse tube | 1 | piece | |
| 7 | instruction manual | 1 | copy | |
| 8 | Certificate warranty card | 1 | copy |
