| Brand Name: | Shengtai Instrument |
| Model Number: | SH0048 |
| MOQ: | 1 |
| Payment Terms: | T/T |
| Supply Ability: | 4000sets/year |

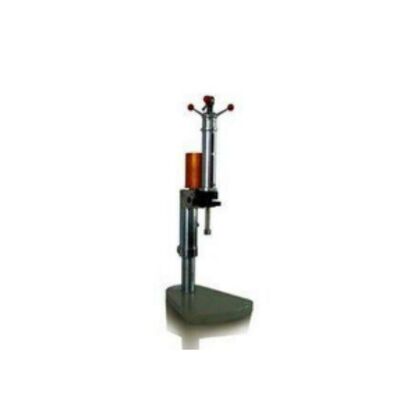

H0048 Grease Similar‑Viscosity Viscometer with Cryogenic Device
he SH0048 Grease Similar‑Viscosity Viscometer is designed to determine the similar viscosity of lubricating grease in accordance with SH/T0048‑91 *Test Method for Similar Viscosity of Grease*. This instrument is equivalent to the GOST 7163 standard for grease similar‑viscosity measurement.
Corresponding standard: ASTM D1092 Standard Test Method for Measuring Apparent Viscosity of Lubricating Greases
Performance Characteristics:
Technical Parameters:
| File number | Speed (RPM) | Linear velocity (cm/s) |
|---|---|---|
| 1 | 0.0111 | 0.0054 |
| 2 | 0.195 | 0.094 |
| 3 | 3.42 | 1.65 |
SH0048-40 Similar viscosity matching cryogenic device
Application and scope of application
SH0048-40 similar viscosity low temperature matching device is a high precision constant temperature source with refrigeration and heating. It can be used as a constant temperature source for constant temperature experiment in the tank inside the machine, or connected with other equipment through hoses.
Instrument performance characteristics
Main technical specifications and parameters
| working power supply | AC220V±10%;50 hz |
| cold tank temperature control | +50℃ ~ -40℃ (custom +50℃ ~ -70℃) |
| Refrigeration system | new refrigerating compressor (double compressor refrigeration). |
| Ambient temperature | ≤30℃. |
| relative humidity | ≤85% |
| power consumption | no more than 1000W |
| Instrument size: 450 * 480 * 580mm Weight: 28kg | |
| You need to bring your own consumables: alcohol. | |
Packing list
| S/N | Name | Unit | Quantity | Remarks |
|---|---|---|---|---|
| 1 | Similar viscosity tester | set | 1 | |
| 2 | capillary | piece | 3 | |
| 3 | Sample tube | piece | 2 | (one of which has been installed in the viscometer) |
| 4 | Grease cup | piece | 1 | |
| 5 | shim | piece | 4 | |
| 6 | instruction manual | copy | 1 | |
| 7 | Certificate warranty card | copy | 1 |
