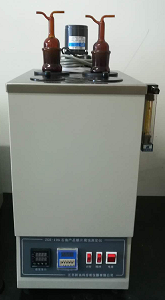

SH0023 Jet Fuel Silver Corrosion Tester ASTM D3241 Corrosion Test Method 4 Holes

SH0023 Jet Fuel Silver Corrosion Tester ASTM D3241 Corrosion Test Method 4 Holes

SH0023 Jet Fuel Silver Strip Corrosion Tester, silver strip corrosion color chart complies with SH/T0023 "Jet Fuel Silver Strip Corrosion Test Method" standard and is applicable to ASTM D3241 standard. Used to evaluate the corrosion tendency of jet fuel on silver components of aviation turbine engine fuel systems; Evaluation of Silver Corrosion Test Method for Jet Fuel. The silver corrosion color chart complies with ASTM D130A and IP 227.

Suitable for evaluating the corrosion tendency of jet fuel on silver components in aviation turbine engine fuel systems.

Used to evaluate the corrosion tendency of jet fuel on silver components of aviation turbine engine fuel systems; Evaluation of Silver Corrosion Test Method for Jet Fuel. How to compare the corrosion of silver plates with color palettes? Test results: Compare the appearance of silver plates after the test with newly polished silver plates (attention should be paid to all surfaces and corners of the silver plates)

Technical Parameter

• Power supply: AC220V ± 10% 50Hz
• Power: 2000W
• Number of test holes: 4 holes
• Temp control range: Room temp ～ 100 ℃
• Temp control accuracy: ± 0.1 ℃
• Environmental requirements: temp 5～40 ℃, humidity ≤ 85%
• PT100 sensor
• Conduct 4 sets of experiments simultaneously
• Time control range: 0.01s～99h59min
• Dimensions: 480 × 360 × 550mm
• Weight: 20kg

Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.

Silver corrosion color chart (imported from ASTM, USA), in accordance with SH/T0023 "Silver Corrosion Test Method for Jet Fuel", ASTM D3241/IP323, ASTM D1660 and other standards. Used to evaluate the corrosion tendency of jet fuel on silver components of aviation turbine engine fuel systems.

The silver corrosion color chart is replicated by full-color processing and consists of 5 typical test silver pieces representing the degree of loss of gloss surface and corrosion increase. For protection, these corrosion standard color plates are embedded in plastic sheets. Instructions for using corrosion standard color plates are provided in the packaging of each standard color plate. To avoid possible fading of the color palette, the corrosion standard color palette should be stored away from light

Color code description

• 0 means no discoloration: except for a slight loss of luster in some areas, it is almost the same as newly polished silver
• 1. Mild discoloration: light brown or silver white fading;
• 2. Moderate discoloration: Peacock screen color, such as blue or purple red, or moderate and deep beige or brown;
• 3 is mild blackening: there are black or gray spots and patches on the surface, or a uniform black deposition film;
• 4. Blacking: uniformly darkening to a depth with or without peeling phenomenon

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

• ----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;
• ----The materials and main components provided meet the technical requirements specified in the technical documentation;
• ----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).
• ----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.
• ----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.
• ----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
