| Brand Name: | Shengtai Instrument |
| Model Number: | SH119 |
| MOQ: | 1 |
| Payment Terms: | T/T |
| Supply Ability: | 7000 sets / year |

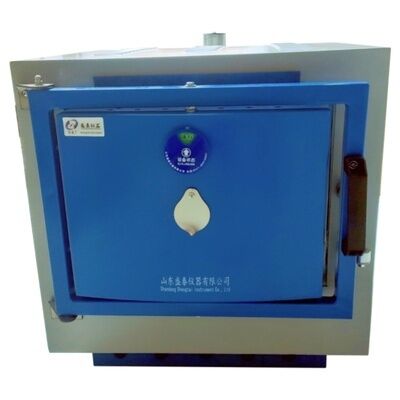

SH119 Petroleum Product Ash Tester for Ash & Sulfated Ash Test ASTM D482
Standards: GB/T 508, ASTM D482, GB/T 2433, SH/T 0067
Engineered to comply with GB/T 508 Determination of Ash in Petroleum Products, ASTM D482, GB/T 2433 Sulfated Ash Test for Additives & Additive‑containing Lubricants, and SH/T 0067 Ash Content Testing for Engine Coolants and Rust Preventatives, the SH119 Petroleum Product Ash Analyzer gauges ash levels within petroleum goods as well as sulfated ash values of lubricating oils. This testing apparatus also delivers accurate ash measurement for petroleum formulations with ash‑generating additives (including select phosphorus‑based additive compounds), lead‑infused lubricants, and pre‑owned engine crankcase oil. Equipped with an upgraded ceramic furnace heating assembly, this unit performs reliable sulfated ash testing for additive‑loaded lubricants and additive concentrates blended into lubricant blends.
Key Performance Advantages: ● Its enclosure is constructed from folded‑and‑welded steel sheet finished with electrostatic powder coating. Premium silicon‑carbon rods serve as heating components, while high‑grade aluminum silicate fiber acts as thermal insulation media. ● The furnace cavity adopts ceramic fiber construction, boasting rapid heat‑up performance (hitting 1000℃ within roughly 30 min) and superior thermal retention. Even at 1000℃ operating temperature, the outer cabinet remains cool for safe manual contact. ● Built‑in microcomputer‑driven PID regulation comes as standard; intelligent programmable controllers are available as an optional upgrade upon buyer request. It enables multi‑stage ramp‑up and hold temperature setup, alongside overheat alert and timing operational capabilities.
Technical parameters:
| Heating range | RT ～ 1000℃ |
| Temp control | 775 ± 25℃ |
| Temperature control element | Thermocouple |
| Empty furnace heating time | ≤ 60min |
| Uniformity of furnace temperature | ≤ 15℃ |
| Working power supply | AC220V ± 10% 50Hz |
| Rated power | 3.8 kW |
| Inner container size | 300 * 200 * 140mm (D * W * H) |
| Instrument size | 550 * 5800 * 540mm |
| Instrument weight | 32kg |
| Packaging size | 680 * 650 * 620mm |
| Packaging weight | 40kg |
Note: The appearance pictures, dimensions, volume and weight of the instrument are for reference only. If there are any updates to the instrument, they may be slight changes without prior notice.
Package list
| S/N | Name | Quantity | Unit | Remarks |
| 1 | High temperature heating furnace | 1 | Set | |
| 2 | Temperature controller | 1 | Set | |
| 3 | Porcelain crucible | 10 | Piece | |
| 4 | Crucible tongs | 1 | Piece | |
| 5 | Power cord | 1 | Piece | |
| 6 | Fuse tube | 1 | Piece | 10A |
| 7 | Instruction manual | 1 | Copy | |
| 8 | Packing list | 1 | Copy | |
| 9 | Certificate | 1 | Copy |
Instrument Quality Assurance Certificate
Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:
The provided instrument materials are brand new, meet quality standards, and have a manufacturer's certificate of conformity;
The materials and main components provided meet the technical requirements specified in the technical documentation;
The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).
We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.
Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.
After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
Packaging and Delivery
Goods packaging: standard wooden or cardboard boxes.
Internal packaging: Elastic pearl cotton packaging product, hardwood board+strong bandage to fix corners.
