| Brand Name: | Shengtai Instrument |
| Model Number: | SD-30011 |
| MOQ: | 1 carton |
| Payment Terms: | T/T |
| Supply Ability: | 10 cartons per week |

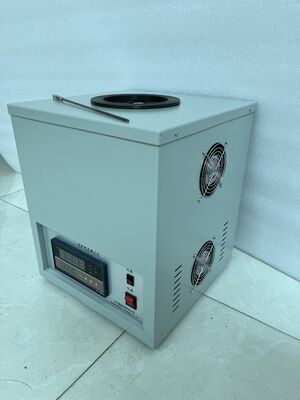

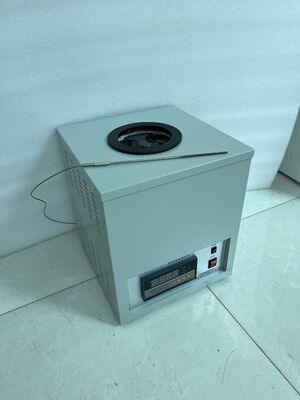

Electric Furnace Carbon Residue Tester, for Determination of Carbon Residue in Petroleum Products and Heavy Liquid Fuels
SD30011 Digital Electric Furnace Carbon Residue Tester is designed and manufactured in accordance with the Chinese industry standard SH/T 0170, Test Method for Carbon Residue (Electric Furnace Method). It is used to determine the carbon residue of lubricating oils, heavy liquid fuels and other petroleum products complying with SH/T 0170 test requirements.
Alternative Names:
Carbon Residue Tester (Electric Furnace Method)
Electric Furnace Carbon Residue Tester
Carbon Residue Apparatus for Fuel Carbon Residue Testing
Electric Furnace Method Carbon Residue Tester
Main Technical Features
The instrument adopts an integrated structural design. The heating furnace and controller form an integrated unit with an attractive and modern appearance.
Equipped with a digital temperature controller featuring main heating and auxiliary heating functions. The auxiliary heating can be controlled automatically or manually as required for simple operation.
The heating furnace can reach a temperature of 520℃. Its temperature control accuracy is ±5℃ across the full temperature range, satisfying test requirements.
Benchtop structure with a 4-hole furnace. Four samples can be tested simultaneously to achieve high testing efficiency.
Main technical parameters and indicators
| Power supply | AC(220±10%)V, 50Hz |
| Heating mode | Electric furnace |
| Heating power | two gears, main heating and auxiliary heating, 300W+600W+1000W; |
| Temp. Control range | (0~520)ºC |
| Temp. Control accuracy | ±5ºC |
| Test furnace | One furnace with four holes |
| Ambient temperature | Room temperature~ 35ºC |
| Relative humidity | ≤85% |
| Maximum power consumption | 2000W |
| Dimension | 350mm×360mm×365mm |
| Weight | 29kg |
Packing List
| S/N | Name | Quantity | Unit | Remarks |
| 1 | host | 1 | set | |
| 2 | steel bath cap | 4 | piece | |
| 3 | Porcelain crucible | 4 | piece | |
| 4 | Crucible cover | 4 | piece | |
| 5 | Crucible tongs | 1 | piece | |
| 6 | power cord | 1 | piece | |
| 7 | fuse tube | 1 | piece | 10A |
| 8 | Operating instruction | 1 | copy | |
| 9 | packing list | 1 | copy | |
| 10 | Certificate of approval | 1 | copy |
