| Brand Name: | Shengtai Instrument |
| Model Number: | SH103B |
| MOQ: | 1 |
| Payment Terms: | T/T |
| Supply Ability: | 6000sets/year |

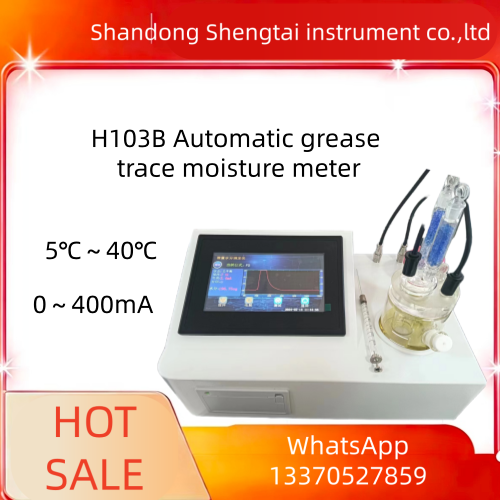

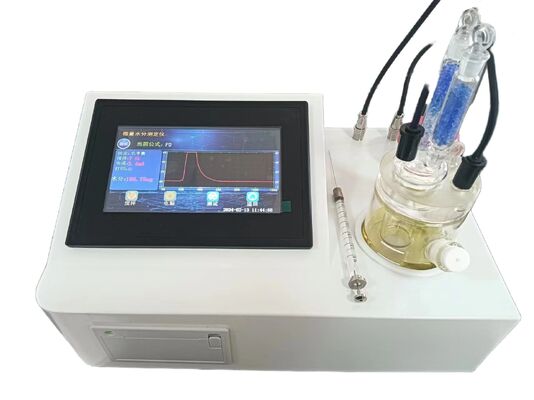

SH103B Automatic Grease Trace Moisture Meter Karl‑Fischer Coulombtitration for Petroleum Chemical
The SH103B automated trace moisture tester for grease complies with specification criteria including GB/T 7600, GB/T 6283, SH/T 0246 and SH/T 0255 standards.
This unit adopts Karl‑Fischer coulometric titration to quantify trace moisture levels within various liquid samples of diverse properties.
Boasting high measuring accuracy, rapid testing cycles and consistent, dependable readouts, this device finds extensive deployment across petroleum, chemical processing, power generation, environmental monitoring, pharmaceutical and related industrial sectors.
It delivers fast moisture detection for alcohols, crude oils, fats, ethers, esters, acids, alkanes, benzene, amines, organic solvents, agrochemicals, phenols, pharmaceutical raw materials and numerous petrochemical, chemical and medicinal products.
Key Performance Highlights
Powered by a 64‑bit embedded microprocessor and running a compact embedded operating system.
Features constant‑current sensing for superior accuracy, quick analysis and background offset compensation to guarantee steady, trustworthy outputs.
Dual‑loop balanced titration minimizes testing deviations and delivers enhanced detection sensitivity.
The electrolytic cell comes with optimized water‑sealed construction for shortened equilibration periods and extended electrolyte service life.
Integrated automatic draining and reagent refilling capabilities on the main unit significantly optimize onsite operating conditions.
Real‑time electrolysis graph visualization enables instant monitoring of reagent conditions. Large‑format touch‑operated LCD panel delivers intuitive navigation and user‑friendly interaction.
Complete numeric keypad alongside compatibility with six computational formulas streamlines on‑site data computation.
High‑capacity onboard memory facilitates straightforward logging and retrieval of test measurement data.
Technical parameters
| Titration method | Electrometric titration |
| Electrolytic current | 0～400mA |
| Measuring range | 3μg～100mg(water) |
| Distinguish rate | 0.1μg |
| Fine degree | 3μg±20%,10μg±10%,100μg±5%,100μg±0.5%(No injection error is included) |
| Display mode | Chinese liquid crystal display |
| printer | Thermosensitive type, 36 characters, Chinese output |
| environment temperature | 5℃～40℃ |
| power supply voltage | 220V±10% 50Hz±10% |
| Power consumption | <40W |
| Overall dimensions | 300×290×200mm |
| Heavy volume | 3.7kg |
Packing list
| S/N | Name | Quantity | Unit | Remarks |
| 1 | Host | 1 | set | |
| 2 | Electrolyte | 1 | bottle | 500ml |
| 3 | Electrolytic cell | 1 | piece | |
| 4 | Stirrer | 1 | piece | |
| 5 | Silicone pad | 10 | piece | |
| 6 | Discolored silica gel | 1 | piece | |
| 7 | Vacuum grease | 1 | piece | |
| 8 | 1ml injector | 1 | piece | |
| 9 | 25ul micro injector | 1 | piece | |
| 10 | Closed needle | 1 | piece | |
| 11 | power cord | 1 | piece | |
| 12 | Instructions | 1 | copy | |
| 13 | Certificate warranty card | 1 | copy |
