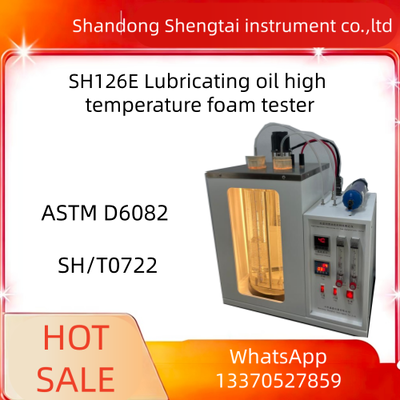

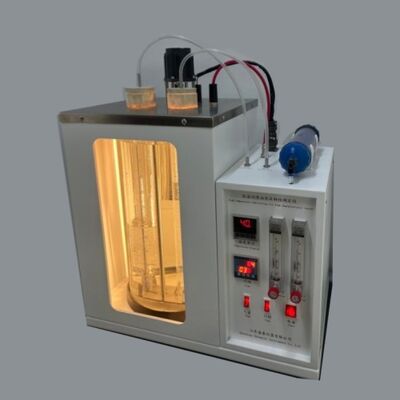

SH126E Lubricating Oil High‑Temperature Foam Tester ASTM D6082 150℃ Lubricant Foam Performance

Product Details

The SH126E high‑temperature foam tendency tester complies with ASTM D6082 and SH/T0722 standards. This device is built to evaluate high‑temperature foaming performance of lubricating oils under 150 °C test conditions.

Test workflow: Warm up the test specimen to 49 °C and hold this temperature for 30 min before cooling it down to ambient temperature. Next, pour the treated sample into the standard graduated cylinder and heat it up to 150 °C. Feed dry compressed air through the metallic diffuser assembly for a 5‑minute aeration cycle. Right before cutting off the airflow, record static foam volume and dynamic foam volume. After stopping gas supply for the required holding period, capture post‑aeration static foam value, foam collapse duration, as well as the total volume expansion percentage.

Key Features

1. Modular split‑frame construction, equipped with heating bath unit and high‑precision flow regulators
2. Heat‑resistant borosilicate glass measuring cylinder (Φ300 × 450 mm), fully compliant with industry specification criteria
3. Eco‑friendly oil‑bath heating system: minimizes harmful oil fume exposure for operators while delivering superior heat‑retention performance
4. Corrosion‑resistant stainless‑steel heating element
5. Air filtering unit fitted with glass‑wool filter media
6. Microprocessor‑driven thermal regulator with PID logic; digital temperature readout at 0.1 °C resolution, paired with Pt100 RTD temperature sensor

Technical Specifications

1. Temperature regulation: premium imported PID digital temperature controller
2. Temperature control precision: ±0.1 °C
3. Heating mode: circulating oil bath heating
4. Total rated power: 2.5 KW
5. Test positions: dual‑tube simultaneous testing setup
6. Gas flow management: high‑accuracy rotameter
7. Input power: AC 220V / 50Hz
8. Operating test temperature: 150 ± 0.1 °C
