| Brand Name: | Shengtai Instrument |
| Model Number: | SD6540 |
| MOQ: | 1 carton |
| Payment Terms: | T/T |
| Supply Ability: | 10 cartons per week |
ASTM D1500 Oil Laboratory Color Comparator for Accurate Color Measurement of Petroleum Products
The SD6540 Petroleum Product Chroma Tester complies with SH/T0168-92 Method for Determination of Chroma of Petroleum Products, GB/T6540 and ASTM D1500 standards. It is used to test the color of various lubricating oils and other petroleum products.
Petroleum Products Chroma Tester
The test procedure: fill the colorimetric tube with petroleum product sample, then compare the sample against standard color slides to obtain the chroma color number.
ASTM D1500 Oil Colorimeter / Laboratory Color Tester for Petroleum Products
Portable Petroleum Oil Chroma Analyzer / Digital Colorimeter
ASTM D1500 Oil Laboratory Color Comparator, Oil Colorimeter
Chinese Supplier of Laboratory Oil Test Equipment | ASTM D1500 Oil Colorimeter / Lab Oil Color Tester for Petroleum Products
Factory Direct Hot Sale ASTM D1500 Lubricating Oil Colorimeter, Petroleum Products Color Tester
ASTM D1500 Petroleum Testing Instrument, Transformer Oil Color Tester
Performance characteristics:

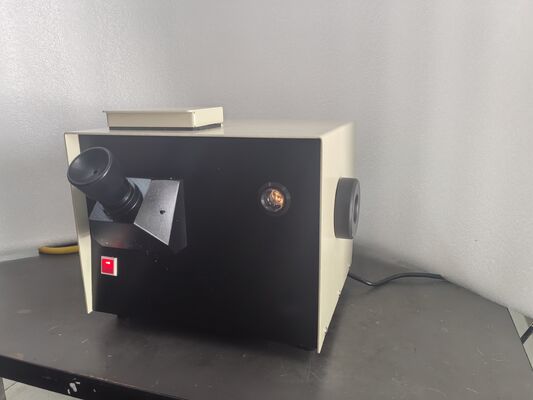

Observation eyepiece consists of concave lens and convex lens, can see two semicircular colors at the same time
Optical eyepiece with light adjustment and focus ability, easy to use
Reasonable structure design, convenient operation and use
4 color numbers correspond to ASTM D1500, GB/T6540 and ISO color numbers
| Model Number | SD6540 |
| Place of Origin | China |
| Power | Electronic |
| Keyword | Petroleum Products Chroma Meter |
| Standard | GB/T6540 SH/T0168 ASTM D1500 |
| Power supply | 220V 50Hz |
| chroma tester can be tested transformer oil, lube oil, turbine oil,Hydraulic Oil | |
| Warranty | 12 Months |
| Color dial | 26 pieces of 14 light holes |
| Color comparing tube | 32 mm, 120~130 mm high non-colorful flat bottom glass tube |
| Size | 45cm*42cm*35cm |
| Gross weight | 6 kg |
Technical parameters:
1 Light source: 220V, 100W, temperature of 2750±50K internal frosted emulsion bulb
2 colorimetric tube diameter Φ 32 mm, 120 ~ 130 mm colorless flat glass tubes
3 standard color wheel: 26, Φ 14 light hole, of which 25 respectively order # 1-25 color standard color glass piece, 26 hole for blank
4.The 25 color codes of this instrument and the color code of ASTM D1500 can be viewed according to the corresponding appendix
Packing list
| S/N | Name | Number | Unit | Remarks |
| 1 | host | 1 | set | |
| 2 | Colorimetric tube | 4 | piece | |
| 3 | Creamy white internal frosted bulb | 1 | piece | |
| 4 | fuse tube | 1 | piece | 10A |
| 5 | Operating instruction | 1 | copy | |
| 6 | packing list | 1 | copy | |
| 7 | Certificate of approval | 1 | copy |
