Frequency 50hz Viscosity Tester Lubricating Oils 1800W Heating Power

Frequency 50hz Viscosity Tester Lubricating Oils 1800W Heating Power

Brand Name: Shengtai Instrument
Model Number: SD8022
MOQ: 1
Payment Terms: T/T
Supply Ability: 10000 sets/year
Detail Information
Place of Origin:
China
Sample Hole:
1 Piece
Temperature Control Range:
Room Temperature~100 ℃
Temperature Control Accuracy:
± 0.5 ℃
Timing Range:
0-99 Minutes, Can Be Set Arbitrarily
Mixing Motor Speed:
4500 Rpm
Heating Power:
1800W
Power Supply Voltage:
AC220V ± 10%
Frequency:
50Hz ± 5%
Packaging Details:
wooden case
Highlight:

50hz viscosity tester for lubricating oils

,

1800W heating power viscosity tester

,

viscosity tester with 50hz frequency

Product Description

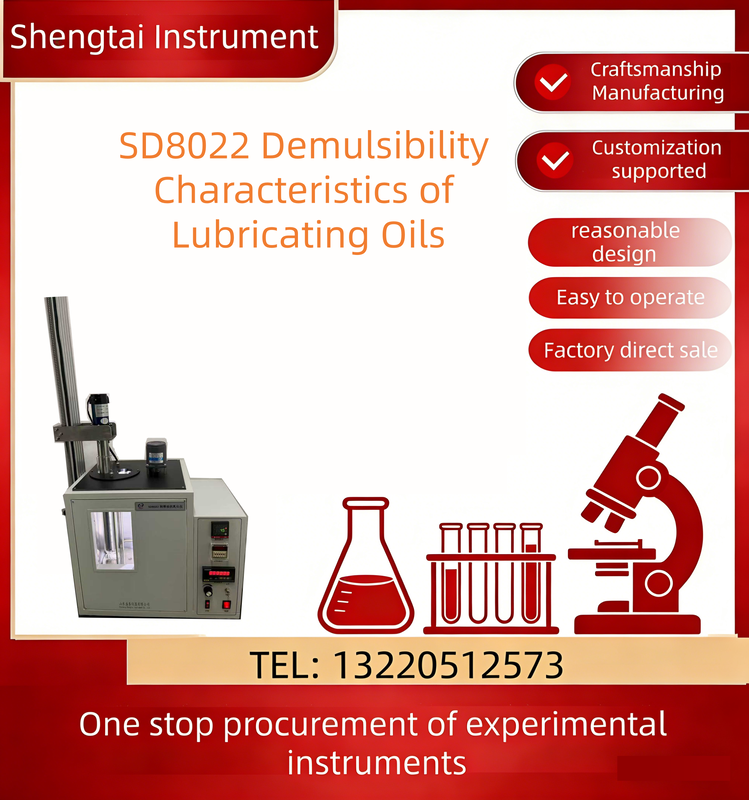

The SD8022 Lubricating Oil Demulsibility Characteristics Tester is designed to evaluate the oil-water separation performance of medium and high viscosity lubricating oils. It fully complies with the test standards GB/T 8022 and ASTM D2711.

Instrument Features
  • Equipped with digital tube temperature display, providing intuitive readings and simple operation.
  • Supports independent demulsibility testing for one single sample at a time.
  • Adopts advanced PID constant temperature control technology to achieve high temperature control accuracy and excellent stability.
  • Fitted with imported PT100 high-precision temperature sensor, ensuring accurate and reliable temperature measurement.
  • Users can freely set and adjust temperature control values and other test parameters according to test requirements.
Technical indicators:
  • Sample hole: 1 piece
  • Temperature control range: room temperature~100 ℃
  • Temperature control accuracy: ± 0.5 ℃
  • Timing range: 0-99 minutes, can be set arbitrarily
  • Mixing motor speed: 4500 rpm
  • Heating power: 1800W
  • Power supply voltage: AC220V ± 10%
  • Frequency: 50Hz ± 5%
Packing List
S/N Name Quantity Unit Note
1 host 1 set
2 Temperature sensor 1 piece
3 Separation funnel 1 piece 500ml
4 centrifuge 1 piece
5 Test tube 1 piece
6 power cord 1 piece
7 fuse tube 1 piece 10A
8 Operating instruction 1 copy
9 Packing list 1 copy
10 Certificate 1 copy
