| Brand Name: | Shengtai Instrument |
| Model Number: | SH0048 |
| MOQ: | 1 |
| Payment Terms: | T/T |
| Supply Ability: | 100000sets/year |

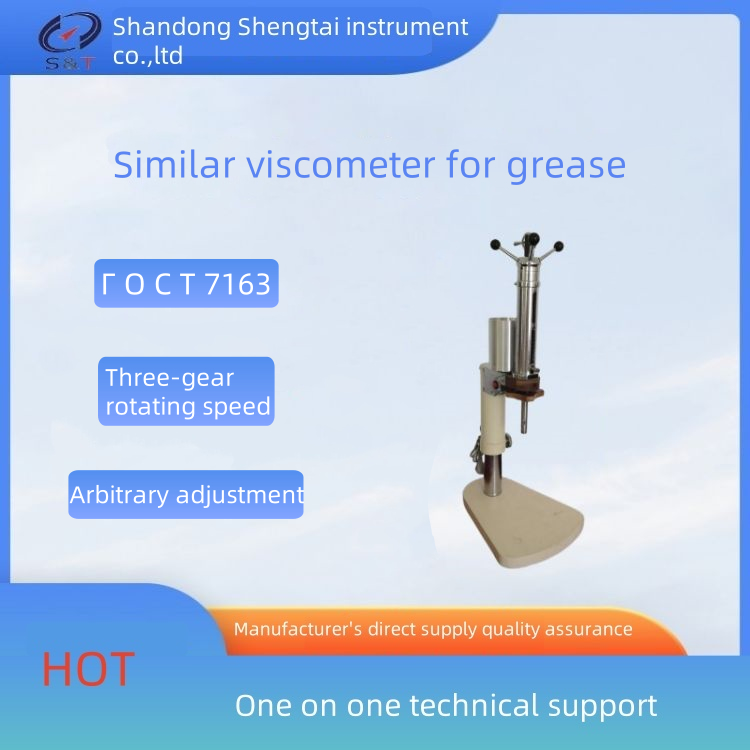

Lubricating Grease Similar Viscosity Tester Spring Pressure Capillary Viscometer
SH0048 Grease similar viscosimeter is used to determine the similar viscosity of grease according to SH/T0048-91 "similar viscosity of grease measurement method".
Instrument equivalent Г О С Т 7163 standard for similar grease viscometry.
Performance characteristics:
Adopt spring pressure type capillary viscometer
The height and direction of the instrument can be adjusted arbitrarily on the column
Recording cylinder can have three speeds to choose from
4 the whole instrument structure is compact and complete
Technical parameters:
1 standard capillary size:0.025, 0.05, 0.1 cm
2. The maximum strength of spring group: 60Kg/cm2
3 Record paper size: 110×300mm
The speed and linear speed of recording paper are compared
Instrument size: 320x420x850 mm; weight: 18 kg
| File number | Speed (RPM) | Linear velocity (cm/s) |
| 1 | 0.0111 | 0.0054 |
| 2 | 0.195 | 0.094 |
| 3 | 3.42 | 1.65 |
