SH129 Grease Drum Stability Tester for Grease Mechanical Shear Stability Test ASTM D1831

SH129 Grease Drum Stability Tester for Grease Mechanical Shear Stability Test ASTM D1831

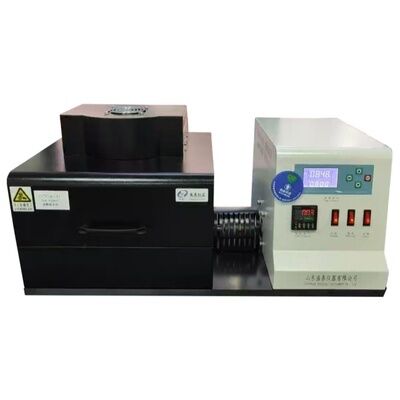

The SH129 Grease Drum Stability Tester meets ASTM D1831 and SH/T 0122, the grease roller‑stability testing specification. For operation, load a defined grease specimen and run a 2‑hour room‑temperature cycle on this drum test unit, then compare the worked penetration values of grease pre‑test and post‑test. Designed to evaluate consistency variation of grease after drum‑type mechanical cycling, this lab equipment evaluates grease resistance to mechanical shear forces.

• Heavy‑duty stainless‑steel drum: Φ90×180 mm, 5 kg weight;
• Idler pulley fitted with locating ring to secure steady drum rotation;
• Bottom‑mount drive motor delivers stable rotation ranging from 155‑180 r/min;
• Belt‑powered transmission for drum rotation;
• Digital‑readout microprocessor temperature controller, ±5 °C precision, paired with PT100 thermal sensor;
• Digital countdown timer tracks runtime and comes with buzzer alert reminder;
• Supports dual‑sample simultaneous testing with two drums;
• Thermometer port built‑into equipment lid allows on‑site temperature calibration

Note: The appearance, dimensions, volume, and weight of the instrument are for reference only. Minor changes may occur if the instrument is updated, and no further notice will be provided.

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

• ----The provided instrument materials are brand new, meet quality standards, and have a manufacturer's certificate of conformity;
• ----The materials and main components provided meet the technical requirements specified in the technical documentation;
• ----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).
• ----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.
• ----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.
• ----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.

• Goods packaging: standard wooden or cardboard boxes.
• Internal packaging: Elastic pearl cotton packaging product, hardwood board+strong bandage to fix corners.
