| Brand Name: | Shengtai Instrument |
| Model Number: | SH0030 |
| MOQ: | 1 |
| Payment Terms: | T/T |
| Supply Ability: | 10000 Sets/year |

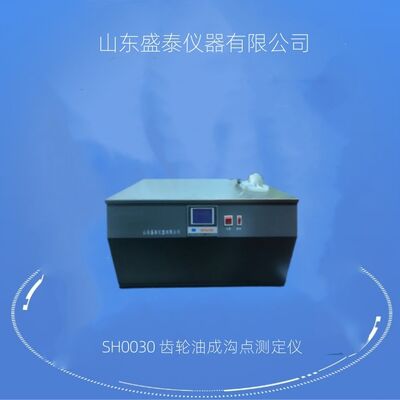

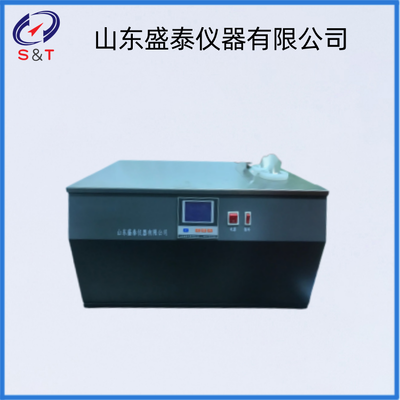

SH0030 Vehicle Gear Oil Groove Point Tester SH0030 Metal Bath SH/T 0030 Room Temp ～ -70 ℃
SH0030 Gear Oil Grooving Point Tester is designed and manufactured in compliance with standard SH/T 0030-1990 “Test Method for Groove Points of Automotive Gear Oil” and FTMS 791B 3456.1. It is used to determine the grooving point of gear oil following the test procedures defined in the above standards.
Main technical specifications and performance features:
● Cooling system: Compressor refrigeration (dual compressors)
● Output: Compact LCD display with stable temperature control
● Cooling medium: Metal bath cooling. No alcohol replacement required; fast cooling rate
● Power supply: AC220V ±10%, 50Hz
● Temperature control range: Ambient temperature down to -70 ℃
● Groove-forming steel plate: 152.4mm × 191mm × 3.2mm, stainless steel material
● Test cell: Single slot, single test hole
● Temperature control accuracy: ±0.5 ℃
● Ambient temperature requirement: ≤ 30 ℃
● Relative humidity: ≤ 85%
● Power consumption: ＜1500W
● Packing dimensions: 890 × 530 × 480 mm
● Net weight: 75 kg
| Cooling method | Compressor cooling (dual compressors) |
| Display mode | Small LCD display |
| Refrigeration medium | metal bath |
| Working power supply | AC220V ± 10% 50Hz |
| Temp control range | room temp ～ -70 ℃ |
| Size of steel sheet for trenching | 152.4mm* 191m * 3.2mm |
| Material | Stainless steel |
| Number of experimental holes | single slot single hole |
| Relative humidity | ≤ 85% |
| Power consumption | <1500W |
| Packaging size | 890 * 530 * 480mm |
| Weight | 75kg |
Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.
Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:
----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;
----The materials and main components provided meet the technical requirements specified in the technical documentation;
----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).
----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.
----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.
----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
Packing list
| Number | Name | Quantity | Unit | Note |
| 1 | Host | 1 | Unit | |
| 2 | Test container for trenching point | 1 | Piece | built-in |
| 3 | Thermometer | 1 | Piece | |
| 4 | Steel sheet for trenching | 1 | Piece | |
| 5 | Power line | 1 | Strip | |
| 6 | Fuse tube | 1 | Piece | |
| 7 | Operation instructions | 1 | Copy | |
| 8 | Packing list | 1 | Copy | |
| 9 | Certificate of Conformity Warranty Card | 1 | Copy |
