| Brand Name: | Shengtai Instrument |
| Model Number: | SY0643 |
| MOQ: | 1 |
| Payment Terms: | T/T |
| Supply Ability: | 30000sets/year |

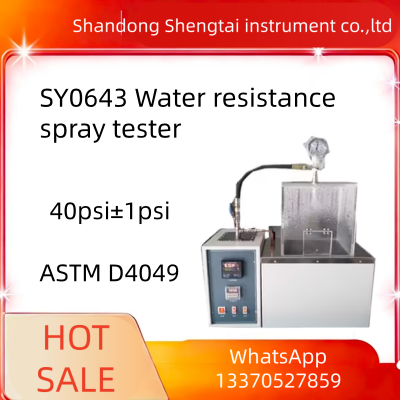

SY0643 Water Resistance Spray Tester for Grease Spray‑Resistance Test ASTM D4049
This SY0643 grease water‑spray resistance test equipment operates on the following working principle: apply lubricating grease evenly onto a stainless‑steel test panel, then subject the sample to water spraying under predefined temperature and pressure settings. Once the 5‑minute testing cycle finishes, calculate the percentage weight loss of the grease sample caused by water spraying; this figure evaluates how well the lubricating grease resists water wash‑off. Built with a clear perspex spray chamber for straightforward visual observation, the unit is fitted with a high‑accuracy pressure gauge to show real‑time spray pressure readings.
Alternative product naming variants
| Applicable standards: | ASTM D4049 SH/T0643 |
| Working water pressure: | 40psi±1psi |
| Water pressure control: | Bypass valve adjustment |
| Heating method: | Electric heating tube heating |
| Timing method: | Digital display timer |
| Working temperature: | 38±0.5ºC |
| Spray method: | Precision sprinkler head |
| weight | 24kg |
| size | 480*350*580mm |
| stainless steel nozzle, nozzle diameter | Φ3.18mm; |
| Temperature control mode |
digital display PID temperature controller |
Packing list
| S/N | Name | Quantity | Unit | Remarks |
|---|---|---|---|---|
| 1 | Host | 1 | set | |
| 2 | Mould | 1 | piece | |
| 3 | Scraper | 1 | piece | |
| 4 | power cord | 1 | piece | |
| 5 | Instructions | 1 | copy | |
| 6 |
Packing list |
1 | copy | |
| 7 | Certificate warranty card | 1 | copy |
Company Introduction
Shandong Shengtai Instruments Co., Ltd. is specialized in the research and production of experimental testing instruments and industrial testing instruments. It is a professional instrument company integrating instrument research and development, manufacturing, sales and service. Its products are widely used in food, flour, grain and oil, Feed, electricity, petrochemical, industrial oil, aerospace, coal quality and other industries.
For more than 10 years, Shengtai has always been adhering to the "first-class service, customer first" as the purpose, "reasonable price, honesty and trustworthiness" as the business policy. Adhere to technical innovation, with rich knowledge of the technical team and experienced, thoughtful after-sales service team.
Shengtai instrument as one of the most large-scale and competitive enterprises in the industry, with the strength of technology research and development, professional technical knowledge and innovative design concept, in the model improvement, Significant technical breakthrough has been achieved in the development of function expansion and intelligent control system.
OUR service
After-sales service commitment, our company to sell the product after-sales service commitment: warranty period of one year, long-term technical support outside the warranty period. During the warranty period, the seller shall bear the cost of the replacement of the equipment, the freight and maintenance of the instrument; outside the warranty period, the seller shall waive the maintenance fee and charge only the cost of the basic materials and freight charges when the instrument is malfunctioning and the seller shall not charge the maintenance fee during the warranty period.
