| Brand Name: | Shengtai Instrument |
| Model Number: | SH12C |
| MOQ: | 1 |
| Payment Terms: | T/T |
| Supply Ability: | 4000sets/year |
SH126C Coolant foam propensity tester
SH126C engine coolant foam tendency tester is designed according to the requirements of the People's Republic of China petrochemical industry standard SH/T0066 "engine cooling foam determination method", suitable for the determination of diluted or concentrated engine coolant foam according to the test method of SH/T0066 standard.

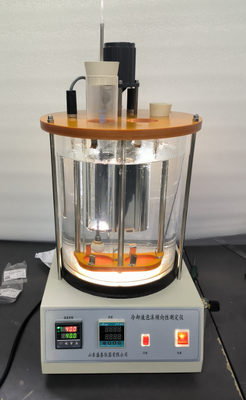

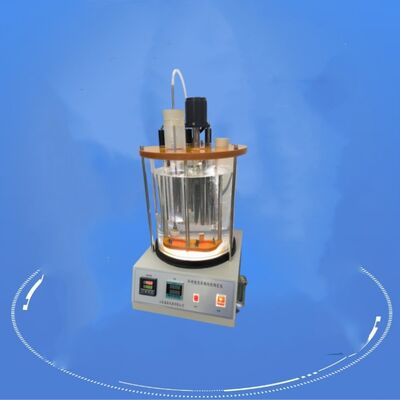

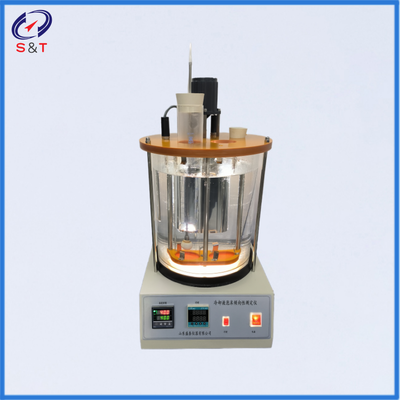

The instrument is composed of a glass bath, an electric control box, an electric heater, an intelligent digital temperature controller, a microcontroller, two 500ml heat-resistant glass measuring cylinders, two gas flow meters and two groups of gas diffusion.
Instrument structure and technical conditions in accordance with the standard requirements of ASTM D1881
Engine Coolants Foaming Tendencies Analyzer
Engine Coolants Analysis ASTM D1881 Foaming Tendency Analyzer
Technical parameters
● Working power supply: AC220V±10%, 50 hz;
●, heating power: 2000W;
● Holes:2
● air flow: precision flow meter control
●Temperature control range: room temperature ~ 99.9℃
●timing mode: automatic timing, can be set by themselves
●ambient temperature: -10 ~ +40℃;
● relative humidity: ≤85%;
Specifications of Foaming Tendency Tester:
| Applicable standards | SH/T0066 ASTM D1881 |
| Working unit | 2 holes working simultaneously |
| Pressure display | pressure meter |
| Pressure adjustment | Through flow meter |
| Stirring method | Electric stirring |
| Heating method | Electric tube heating |
| Power supply | AC220V ± 10%, 50Hz |
| Heating power | 2000W |
| Measuring range | room temperature ~ 99.9 °C |
| Ambient temperature | -10~ +40ºC |
| Relative humidity | 85% |
| Instrument size: 350 * 280 * 360mm Weight: 25kg | |
| Package size: 600 * 480 * 580mm Weight: 31kg | |
| Packing list | |||||
| S/N | Name | specification | Unit | Quantity | Remarks |
| 1 | Host | set | 1 | ||
| 2 | Fuse tube | 10A | piece | 2 | |
| 3 | Measuring cylinder | 500mL | piece | 2 | |
| 4 | Rubber plug, airway and aerator head | piece | 2 | ||
| 5 | Thermometer for foam properties | 50-100℃ | piece | 1 | |
| 6 | Power cord | 220V | piece | 1 | |
| 7 | Specification | copy | 1 | ||
| 8 | Warranty card | copy | 1 | ||
