| Brand Name: | Shengtai Instrument |
| Model Number: | SH123 |
| MOQ: | 1 |
| Payment Terms: | T/T |
| Supply Ability: | 40000sets/year |

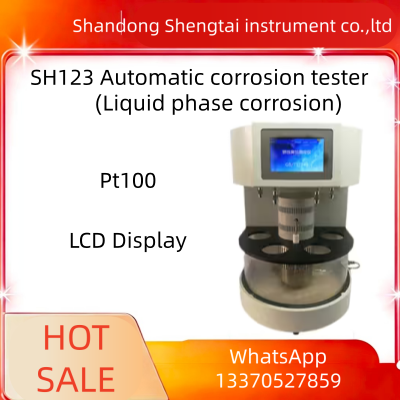

SH123 Automatic Liquid‑Phase Corrosion Tester for Lubricating & Turbine Oil Anti‑Rust Performance Test
SH123 automated liquid‑phase rust testing instrument is engineered to fully comply with GB/T11143 specifications. It primarily assesses anti‑rust properties of inhibitor‑formulated mineral oils and turbine oils under water‑contaminated conditions. This liquid‑phase rust test apparatus also works perfectly for evaluating rust-resistant performance of hydraulic fluids and circulating oils.
Widely deployed within power generation, petrochemical, chemical, commodity inspection and research institutes, this unit adheres to GB/T11143 and ASTM D665 criteria. It gauges metal corrosion susceptibility and additive anti‑corrosion capability present in lubricants, hydraulic fluids and turbine oils upon water exposure.
Core Advantages
Equipped with a large‑format blue LCD display together with Chinese‑language menu interfaces and logo‑free physical buttons. Built‑in microprocessor delivers autonomous temperature regulation and programmable timing, granting straightforward, user-friendly operation. Four independent stirring motors operate silently, ensuring stable, secure performance within a space-saving footprint.
Well‑suited for refineries, power facilities and research laboratories, this device serves as indispensable analytical hardware for petroleum‑oil testing and quality control workflows.
Technical parameters
| 1 | Power supply | AC(220±10%)V, 50Hz |
| 2 | Temperature control range | (room temp~100)℃ |
| 3 | Temperature control accuracy | ±1℃ |
| 4 | Temperature sensor | Pt100 |
| 5 | Temperature display | LCD display |
| 6 | Timing range | 1min~24hour, can be setted at will |
| 7 | Time display | Digital display |
| 8 | Temperature control heating power | 600W |
| 9 | Auxiliary heating power | 1000W |
| 10 | Rotate speed of stirring motor | 1400RPM |
| 11 | Sample stir rate | (1000±50)r/min |
| 12 | Sample testing posiotions | Four positions |
| 13 | Ambient temperature | (0~45)℃ |
| 14 | Relative humidity | ≤85% |
| 15 | Maximum power consumption | 1800W |
| 16 | Dimension: 500mm×330mm×750mm Weight: about 25kg | |
Temperature control mode: LCD screen digital display
Temperature control accuracy: ±0.1℃
Temperature control range: greenhouse ~ 100℃
Sample stirring: 1000±50 RPM
Temperature measuring element: platinum resistance (PT100)
Number of samples: 4 groups, can be used as 4 samples at the same time, can also choose to open any group of experiments according to their own situation, do not interfere with each other
Temperature control time: 0 ~ 100 hours arbitrarily set
Ambient temperature: 0℃ ~ 45℃
Ambient humidity: ≤85%
Power source: AC220V / 50 hz
External dimension: 500mm × 330mm × 750mm Weight: about 25kg
Required consumables: washing solvent;
Copper sheet and test steel rod with its own equipment, after use can choose or own.
Packing list
| S/N | Name | Quantity | Unit | Remarks |
|---|---|---|---|---|
| 1 | Host | 1 | set | |
| 2 | Beaker | 4 | piece | |
| 3 | Beaker lid | 4 | piece | |
| 4 | Test steel bar | 4 | piece | |
| 5 | Stirring rod | 4 | piece | |
| 6 | Alumina gauze | 6 | piece | |
| 7 | Power cord | 1 | piece | |
| 8 | Fuse tube | 1 | piece | |
| 9 | Instruction manual | 1 | copy | |
| 10 | Packing list | 1 | copy | |
| 11 | Certificate of qualification | 1 | copy |
