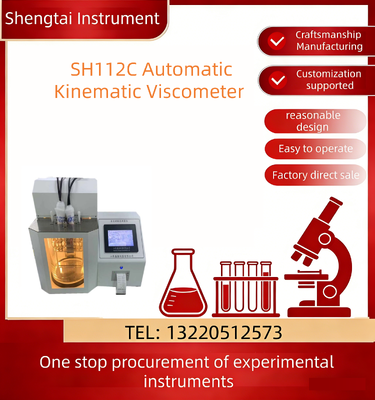

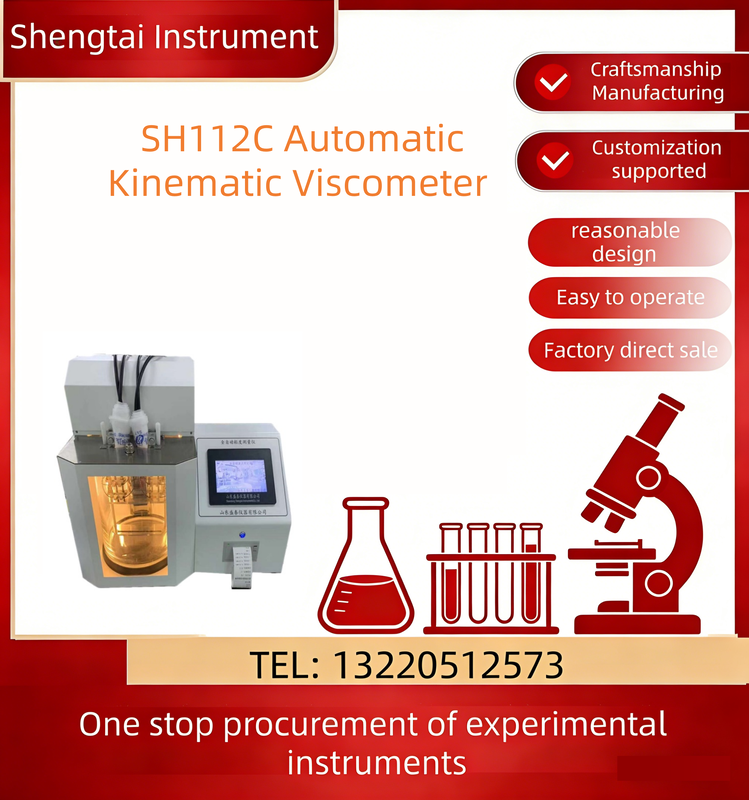

SH112C Automatic Kinematic Viscometer ASTM D445 Oil Viscosity Measuring Instrument

SH112C Automatic Kinematic Viscometer ASTM D445 Oil Viscosity Measuring Instrument

The SH112C Automatic Kinematic Viscometer is designed and manufactured in strict accordance with GB/T265 and ASTM D445 standards. It provides highly repeatable and accurate kinematic viscosity measurements for transparent and opaque liquid samples, including crude oil, light fuel oil, lubricants, additives and silicone oil. It is also suitable for high‑wax‑content samples and liquids containing substances insoluble at ambient temperature.

The instrument realizes fully automatic sample injection, temperature control, viscosity measurement, cleaning and drying. No on‑site manual operation is required. After setting the relevant parameters, operators can leave the site, and the instrument will complete the entire test process automatically.

Working Principle

The test sample is introduced into a matching capillary viscometer immersed in the constant‑temperature bath. The liquid sample is aspirated to the calibrated graduation mark. Timing starts when the liquid flows past the upper calibration mark and stops as it descends to the lower calibration mark. The instrument automatically calculates the kinematic viscosity of the sample.

Key Features

• Large‑format color touch display with 1024*600 screen resolution.
• Powered by a 32‑bit microprocessor controller, running self‑developed graphic human‑machine interaction interface.
• Critical modules and electronic assemblies adopt imported components to ensure outstanding operational stability.
• Built‑in automatic functions: time counting, result computation, printout, internal washing and drying.
• Dual‑chamber structure enables rapid, reliable temperature control with a heating speed exceeding 5℃ per minute.
• Integrated soft LED illumination provides even backlighting for clear visual inspection.
• Supports saving configuration parameters of capillary viscometers.
• Comes with an integrated miniature thermal printer for auto‑measurement and hard‑copy print outputs.
• Compliant test methodologies: GB/T265, ASTM D445.
• Temperature regulation scope: ambient +5℃ to 100.0℃; temperature control precision: ±0.1℃.
• Viscosity measurement scope: 0.6‑1700 mm²/s.
• Timing measurement range: 0.0s‑999.9s.
• Supports two capillary viscometer assemblies; please specify target viscosity range while placing orders.
• High‑precision Pt100 platinum resistance temperature sensor deployed.
• Local storage saves up to 199 groups of historical test records for convenient recall and review.
• Optional USB flash‑drive export function allows transferring test data to personal computers for long‑term archiving.
• Export file formats for USB output: CSV and Excel.
• Viscometer holding fixture is constructed entirely from 304 stainless steel, fitted with high‑low‑temperature resistant graphite sliding bearing units.
• On‑board microcontroller storage can be expanded up to 16GB capacity.
• Standard embedded mini thermal printer for automated measurement and thermal print outputs.
• Remote update capability: TCP‑based network communication supports subsequent remote software upgrades.
• Data integration: Compatible with LIMS system connection (optional accessory).

Physical Specifications

Overall dimension: 450 * 380 * 550 mm

Net weight: 38 kg

Packing list
