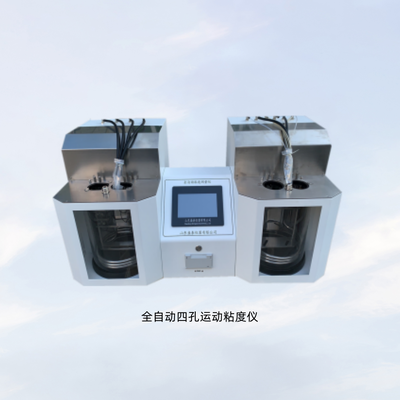

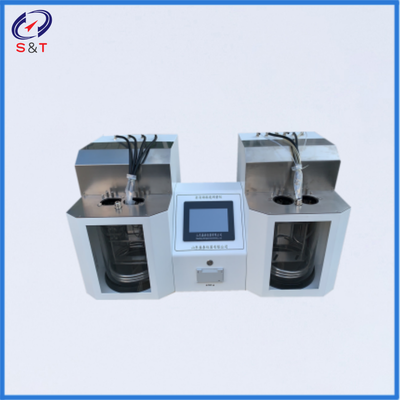

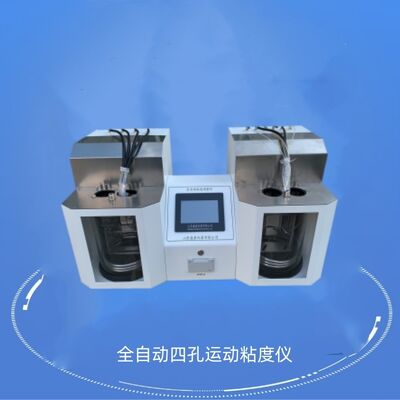

SH112CL Fully Automatic Four Hole Kinematic Viscometer
The SH112CL fully automatic four hole kinematic viscosity tester is designed and manufactured in accordance with the requirements specified in the Chinese standard GB/T265 "Petroleum Product Kinematic Viscosity Determination Method and Dynamic Viscometer Algorithm" for petroleum product kinematic viscosity determination method, and is suitable for measuring the viscosity of light colored petroleum such as lubricating oil.
Kinematic viscosity: It is the time it takes for a certain volume of liquid to flow through a calibrated glass capillary viscometer under gravity at a constant temperature. The product of the capillary constant of the viscometer and the flow time is the kinematic viscosity of the liquid measured at that temperature.
Technical performance parameters:
●Temperature measurement range: room temperature -100 ℃
●Display accuracy: 0.01 ℃
● Display mode: Adopting human body sensing touch screen
● Operation process: The entire process of sample temperature control, detection, calculation, viscosity tube cleaning, drying, and printing report forms is automated
●Viscosity tube fixture: made of all 304 stainless steel material, with high and low temperature resistant graphite sliding bearing device
● Bath volume: A total of 14L
●Number of experimental holes: 2 holes on each side, allowing for asynchronous measurement of two types of samples simultaneously. Double layer insulation; Auxiliary heating automatic
● Temperature setting: freely set the left and right bathtubs
●Equipped with LED soft light, uniform fill light, easy to observe.
●Timing range: 0.0s to 99999s;
●Timing accuracy: ± 0.1s
● Detection method: Pt100 stainless steel probe with built-in temperature correction;
● Result output: It can also be equipped with a USB drive output function to output to the PC for long-term storage
● Printer: equipped with a micro printer
● Power consumption of the whole machine: not exceeding 2000W.
● Working power supply: AC220V ± 10%; 50Hz
● Size and weight: 850 * 380 * 550mm 38kg
