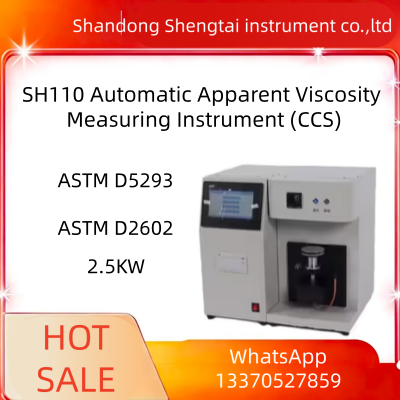

SH110 Automatic Apparent Viscosity Measuring Instrument CCS Engine Oil Low‑Temperatur ASTM D5293

SH110 Automatic Apparent Viscosity Measuring Instrument CCS Engine Oil Low‑Temperatur ASTM D5293

SH110 automatic CCS apparent viscosity meter complies with GB/T6538‑2010, ASTM D5293 and further industry technical standards. This unit is designed to evaluate low‑temperature dynamic viscosity parameters of motor engine oils. It delivers oil apparent viscosity readings across ‑35℃ to ‑5℃, with adjustable 5‑degree‑Celsius temperature stepping. Key merits include precise measurement outputs, outstanding test repeatability, dependable runtime performance and user‑friendly operation workflows. It determines engine‑oil apparent viscosity within ‑5℃ ~‑30℃, covering shear stress levels of 500‑20000 mPa·s alongside shear‑rate ranges of 10⁴‑10⁵ s⁻¹. Equipped with autonomous temperature regulation hardware, the device enables straightforward test setup and analysis via its colour touch‑screen panel.

Referred aliases: ASTM D5293 & ASTM D2602 compliant CCS cold‑cranking simulator; automatic apparent‑viscosity analyser for engine lubricants; CCS cold‑cranking simulator for motor‑oil apparent‑viscosity measurement; test rig for

engine‑oil & base‑stock low‑temperature apparent‑viscosity characterization.

Instrument Highlights

1. Built‑in high‑performance microprocessor control; touch‑screen HMI supports fully‑automated computation, data visualisation and report printout.
2. Multi‑language user interface, Chinese language pack available as configurable option.
3. Fitted with premium Omron imported temperature controller; dual imported compressors deliver high‑capacity refrigeration performance.
4. Real‑time rotational‑speed sensing; current adjustment via fine‑tune knob minimises human‑induced measurement deviations.
5. High‑grade imported drive motor ensures superior testing accuracy; experimental datasets can be saved locally and printed on demand.
6. Auto‑compute test outcomes post calibration with reference standard oils; embedded operating system guarantees stable long‑term operation.
7. Auto power‑off and built‑in heating trigger upon test completion, streamlining fast sample‑chamber cleanup procedures.
8. User‑customizable temperature setpoints; system follows non‑linear temperature ramping profiles to hit target temperatures.
9. Pre‑calibration using certified reference oils establishes the correlation between fluid viscosity and motor rotational speed.
10. Integrated system‑level calibration capability allows swift, convenient recalibration for all core hardware components.

Technical parameters

Shengtai instrument as one of the most large-scale and competitive enterprises in the industry, with the strength of technology research and development, professional technical knowledge and innovative design concept, in the model improvement, Significant technical breakthrough has been achieved in the development of function expansion and intelligent control system.

OUR service

After-sales service commitment, our company to sell the product after-sales service commitment: warranty period of one year, long-term technical support outside the warranty period. During the warranty period, the seller shall bear the cost of the replacement of the equipment, the freight and maintenance of the instrument; outside the warranty period, the seller shall waive the maintenance fee and charge only the cost of the basic materials and freight charges when the instrument is malfunctioning and the seller shall not charge the maintenance fee during the warranty period.
