| Brand Name: | Shengtai Instrument |
| Model Number: | SH21789 |
| MOQ: | 1 |
| Payment Terms: | T/T |
| Supply Ability: | 4000sets/year |

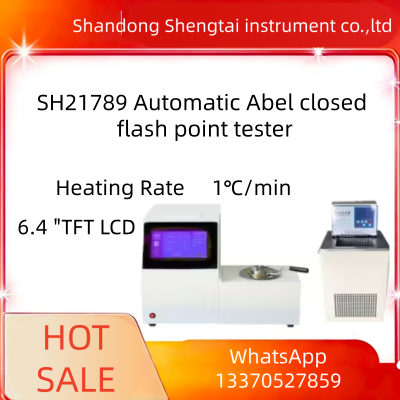

SH21789 Automatic Abel Closed‑Cup Flash Point Tester for Petroleum Liquids GB/T21789 ISO13736
ISO 13736 Compliant Automatic Abel Closed‑Cup Flash‑Point Tester for Petroleum‑Based Liquids,‑30℃ to 70℃ Testing Scope
The SH21789 automatic Abel closed‑cup flash point analyzer is engineered in compliance with GB/T21789 “Flash‑point test for petroleum and other liquids (Abel closed‑cup procedure)” alongside ISO 13736 specifications.
SH21789A Fully‑Automated Abel Closed‑Cup Flash‑point Analyzer Digital Abel Flash Point Apparatus, Automated Closed‑Cup Flash‑point Testing Equipment for Oil Samples ISO 13736 Certified Automated Abel Closed‑Cup Flash‑point Measuring Instrument Fully Automated Abel Closed‑Cup Flash‑point Analyzer Automated Abel Closed‑Cup Flash‑point Tester Complying with ISO 13736
This unit is applicable to measure flash‑point values of petroleum goods and various liquid substances within ‑30℃ ~ 80℃.
Instrument Highlights: Built‑in embedded controller, fitted with imported PT100 thermal sensor to realize full‑process unattended test measurement; Equipped with colourful touch‑screen interface; Supports test‑result archiving; Historical measurement records are retrievable onsite; On‑board thermal printout for test outputs, auto mechanical stirring function; test data can be exported via USB drive for multi‑group comparison after saving on PC.
II. Main technical parameters
| Applicable standards | GB/T21789, ISO13736 IP170 |
| Test range | -30℃ ~ 80℃ or 0-120℃ (external circulating cold water bath) |
| Temperature detection | platinum resistance (PT100) |
| Display mode | 6.4 "TFT LCD |
| Cooling method | compressor cycle refrigeration |
| Heating rate | 1℃/min |
| Display accuracy | 0.1℃ |
| Mixing speed | 0.5r/s(30r/min) |
| Host power consumption | 1800W; |
| Low temperature circulating refrigerator | ≤1200W |
| Power supply | AC 220V±10%, 50Hz |
| Ambient temperature |
|
| Relative humidity |
|
| Abel flash point size: 490*450*580mm Weight: 40kg | |
Storage: 199 sets of historical data can be stored for easy query;
★ Result output: at the same time can be equipped with U disk output function, output to PC for long-term storage (optional)
★ Output format: the output format of the U disk is CSV or EXCEL. (optional)
★ Data protection: with date password setting function. (optional)
Standard printing: standard micro printer automatic measurement automatic thermal printing
★ Remote upgrade: with TCP network transmission function, can be later software remote upgrade (optional)
★ Data management: can be connected to LIMS system (optional)
★ Data memory: microcomputer instrument memory can be expanded to 16G.
Ignition mode: electronic ignition or gas ignition
Packing list
| S/N | NAME | UNIT | Quantity | remarks |
|---|---|---|---|---|
| 1 | host | set | 1 | |
| 2 | Fuse | piece | 1 | |
| 3 | Test cup | piece | 1 | |
| 4 | Test cup cover | set | 1 | |
| 5 | temperature sensor | piece | 1 | |
| 6 | Directions | copy | 1 | |
| 7 | Packing list | copy | 1 | |
| 8 | Certificate warranty card | copy | 1 |
