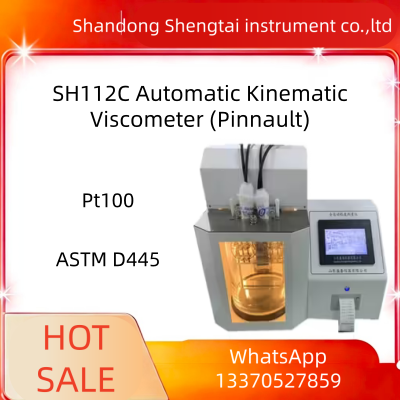

SH112C Automatic Kinematic Viscometer ASTM D445 Oil Viscosity Measuring Instrument

SH112C Automatic Kinematic Viscometer ASTM D445 Oil Viscosity Measuring Instrument

The SH112C automatic kinematic viscometer is engineered and produced in full compliance with GB/T265 and ASTM D445 standards. It delivers consistent‑accuracy kinematic viscosity readings for both transparent and non‑transparent liquid samples, such as crude oil, light fuel oil, lubricants, additives and silicone oil. This unit also works well for specimens rich in wax content or liquids carrying room‑temperature‑insoluble substances.

Featuring fully‑automated sample feeding, temperature regulation, viscosity testing, washing and drying workflows, the device requires no manual on‑site intervention. Operators may step away after completing parameter setup, and the equipment will run the whole testing procedure autonomously.

Working Principle

A test sample is loaded into a matched capillary viscometer submerged inside the thermostatic bath. The specimen is drawn up to the calibrated mark position. Timing initiates once the fluid passes the upper calibration mark, and timing ceases as the sample flows down to the lower calibrated point. The instrument computes the kinematic viscosity value of the test sample automatically.

Key Features

1. Large‑format color touch display with 1024*600 screen resolution.
2. Powered by a 32‑bit microprocessor controller, running self‑developed graphic human‑machine interaction interface.
3. Critical modules and electronic assemblies adopt imported components to ensure outstanding operational stability.
4. Built‑in automatic functions: time counting, result computation, printout, internal washing and drying.
5. Dual‑chamber structure enables rapid, reliable temperature control with a heating speed exceeding 5℃ per minute.
6. Integrated soft LED illumination provides even backlighting for clear visual inspection.
7. Supports saving configuration parameters of capillary viscometers.
8. Comes with an integrated miniature thermal printer for auto‑measurement and hard‑copy print outputs.
9. Compliant test methodologies: GB/T265, ASTM D445.
10. Temperature regulation scope: ambient +5℃ to 100.0℃; temperature control precision: ±0.1℃.
11. Viscosity measurement scope: 0.6‑1700 mm²/s.
12. Timing measurement range: 0.0s‑999.9s.
13. Supports two capillary viscometer assemblies; please specify target viscosity range while placing orders.
14. High‑precision Pt100 platinum resistance temperature sensor deployed.
15. Local storage saves up to 199 groups of historical test records for convenient recall and review.
16. Optional USB flash‑drive export function allows transferring test data to personal computers for long‑term archiving.
17. Export file formats for USB output: CSV and Excel.
18. Viscometer holding fixture is constructed entirely from 304 stainless steel, fitted with high‑low‑temperature resistant graphite sliding bearing units.
19. On‑board microcontroller storage can be expanded up to 16GB capacity.
20. Standard embedded mini thermal printer for automated measurement and thermal print outputs.22. Remote update capability: TCP‑based network communication supports subsequent remote software upgrades.
23. Data integration: Compatible with LIMS system connection (optional accessory).

Physical Specifications
Overall dimension: 450 * 380 * 550 mm
Net weight: 38 kg

Physical Specifications

Overall dimension: 450 * 380 * 550 mm
Net weight: 38 kg

Physical Specifications Overall dimension: 450 * 380 * 550 mm Net weight: 38 kg
