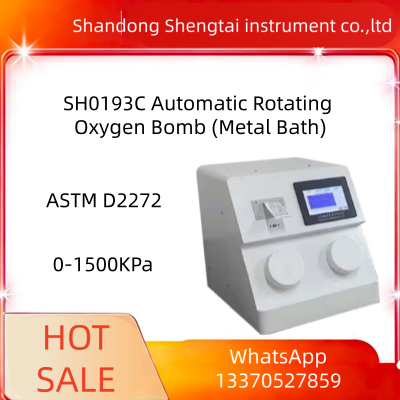

SH0193C Automatic Rotary Oxygen Bomb Metal Bath of Oil Oxidation Stability

SH0193C Automatic Rotary Oxygen Bomb Metal Bath of Oil Oxidation Stability

  SH0193C Automatic rotating oxygen bomb tester is made and designed to the standard of the ASTMD2272-2009<<determination of oxidation stability of lubricating oil>>.Suitable for evaluating oxidation stability of new and used steam turbine oils with the same composition (base oil and additives).It is also used in the determination of oxidation stability of new oil, oil, steam turbine oil, lubricating oil, insulating oil and gasoline engine oil.

Characterstic:

1.heating mode: metal bath heating.

2.The pressure detection, data recording, oxidation time calculation and automatic completion of the test can be carried out automatically.

3.Testing quantity:two holes

4.temperature sensor:Using a special PT100 temperature sensor

5.Display:7-inch color touch screen.

6.High degree of automation: automatic constant temperature, automatic oxygen filling, automatic detection of leakage, automatic recording of test data and real-time display of curves, automatic judgment of inflection point of test, cutting off heating after automatic test.

7.Micro printer: panel thermal sensitivity

Parameter:

1. Power supply: AC220V ±10.

2, heating pipe power: 2500W.

3.The measuring range of pressure sensor is 0 ~ 1.6 MPA, the accuracy is ±2 ‰.

4, temperature control range: room temperature ~ 200.0 ℃

5, the temperature control point can be set: 140.0 ℃, 150.0 ℃.

6, temperature control accuracy: ±0.1 ℃.

7, rotational speed of rotating mechanism: 100 ±5 r / min.

8.The angle between the oxygen bomb and the horizontal plane is 30 °.

9. Instrument size: 600mm * 400mm * 400mm (high aspect ratio)

Main Technology Parameters

Company Introduction

  Shandong Shengtai Instruments Co., Ltd. is specialized in the research and production of experimental testing instruments and industrial testing instruments. It is a professional instrument company integrating instrument research and development, manufacturing, sales and service. Its products are widely used in food, flour, grain and oil, Feed, electricity, petrochemical, industrial oil, aerospace, coal quality and other industries.

  For more than 10 years, Shengtai has always been adhering to the "first-class service, customer first" as the purpose, "reasonable price, honesty and trustworthiness" as the business policy. Adhere to technical innovation, with rich knowledge of the technical team and experienced, thoughtful after-sales service team.

  Shengtai instrument as one of the most large-scale and competitive enterprises in the industry, with the strength of technology research and development, professional technical knowledge and innovative design concept, in the model improvement, Significant technical breakthrough has been achieved in the development of function expansion and intelligent control system.

  Unlike most domestic manufacturers that only adhere to domestic standards, Shengtai Instruments optimizes its product design and supporting services for the global market:
Comprehensive coverage of multiple standards: The core products simultaneously meet the standards of various countries such as China's GB and the United States' ASTM, and the test results are recognized in the global oil trade scenarios.

OUR service

  After-sales service commitment, our company to sell the product after-sales service commitment: warranty period of one year, long-term technical support outside the warranty period. During the warranty period, the seller shall bear the cost of the replacement of the equipment, the freight and maintenance of the instrument; outside the warranty period, the seller shall waive the maintenance fee and charge only the cost of the basic materials and freight charges when the instrument is malfunctioning and the seller shall not charge the maintenance fee during the warranty period.
