| Brand Name: | Shengtai Instrument |
| Model Number: | SH115B |
| MOQ: | 1 |
| Payment Terms: | T/T |
| Supply Ability: | 20000sets/year |

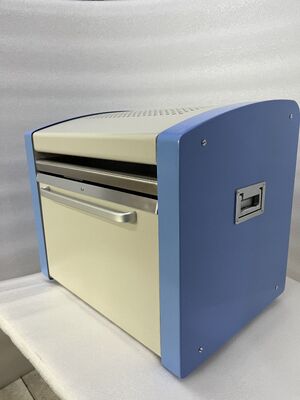

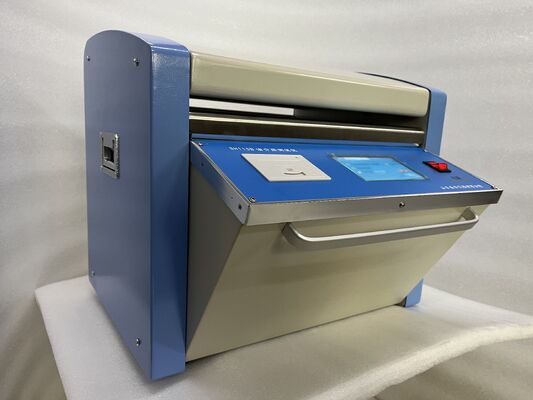

SH115B Insulating Oil Dielectric Loss Resistivity Tester Liquid Insulating Medium Performance
The SH115B is an all‑in‑one high‑precision tester designed to measure the dielectric loss angle and volume resistivity of transformer insulating oil and other liquid insulating materials. Its internal integration consists of a dielectric‑loss test oil cell, temperature control module, temperature sensor, loss‑measuring bridge, AC test power supply, reference standard capacitor, high‑resistance measurement unit and DC high‑voltage power supply.
The instrument adopts advanced high‑frequency induction heating to warm up samples. The oil cell is physically isolated from the heating component, which ensures uniform heat distribution, fast temperature rise and convenient operation adjustment. Its AC power unit applies an AC‑DC‑AC conversion circuit. This design effectively minimizes interference caused by mains voltage fluctuation and frequency variation, ensuring reliable dielectric loss measurement. Stable performance is maintained even when powered by generator units.
The on‑board reference capacitor is a SF₆ gas‑filled three‑pole capacitor. Its capacitance and dielectric loss remain nearly unaffected by ambient temperature and humidity changes, guaranteeing consistent measuring accuracy for long‑term operation. Resistivity measurement strictly complies with GB/T5654.

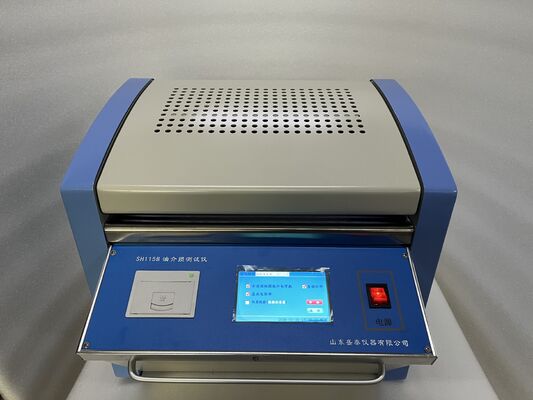

Equipped with fully‑digitalized hardware, the tester enables automatic intelligent measurement with multiple test modes. It features a 320×240 large touch screen, full Chinese menu and step‑by‑step on‑screen operation prompts. Test reports can be printed directly. Operators can master its operation without extensive professional training.
Technical parameters
| 1 | Conditions of use | -15℃∽40℃ RH＜80% | |
| 2 | Electrical source | AC 220V±10% Unrestricted frequency | |
| 3 | AC high voltage output | 400V∽2200V ±2% every100V 50VA | |
| 4 | DC high voltage output | 200V∽600V ±2% | |
| 5 | Temperature controlled induction furnace | The most powerful500W | |
| 6 | Temperature control range | <100℃ | |
| 7 | Temperature control error | ±0.5℃ | |
| 8 | Resolution of temperature measurement | 0.1℃ | |
| 9 | Temperature control of time | At room temperature to90℃ Less than20min | |
| 10 | Measuring range |
tgδ C x R |
Unlimited 15PF-300PF 10M-10T |
| 11 | resolution |
△ tgδ: △ Cx : △ Rx : |
0.001% 0.01pF 0.01 |
| 12 | Fine degree |
△ tgδ: △ Cx : △ Rx : |
±(reading*0.5%+0.040%) ±(reading*0.5%+0.5PF) ±reading * 10% |
| 13 | Relative dielectric constant | εr | According to the Cx Automatic calculation with the same precision Cx |
| 14 | Volume resistivity | ρ | According to the Rx Automatic calculation with the same precision Rx |
| 15 | Overall dimensions | 450(L)×310(W)×360(H) | |
| 16 | Heavy volume | 18Kg | |
Packing list of insulating oil dielectric loss resistivity meter
| S/N | Name | Quantity | Unit | Remarks |
| 1 | Instrument host | 1 | set | |
| 2 |
Oil cup
|
1 | piece | |
| 3 | Test temperature sensing wire | 1 | piece | |
| 4 | Data acquisition line | 1 | piece | |
| 5 | Inspect 2KV high-voltage test line | 1 | piece | |
| 6 | Send to test line | 1 | piece | Black/long/clip at one end/connector at one end |
| 7 | Measuring cup | 1 | piece | 50ml |
| 8 | power cord | 1 | piece | |
| 9 | instructions | 1 | copy | |
| 10 | Packing list | 1 | copy | |
| 11 | Certificate warranty card | 1 | copy |
