| Brand Name: | Shengtai Instrument |
| Model Number: | SH0059B |
| MOQ: | 1 |
| Payment Terms: | T/T |
| Supply Ability: | 3000sets/year |

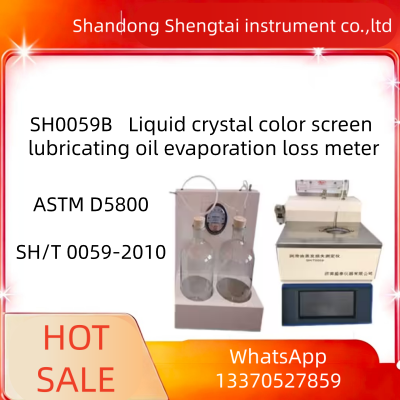

SH0059B Automatic Lubricating Oil Evaporation Loss Tester Operation Technical Specification Manual
SH0059B liquid crystal color screen lubricating oil evaporation loss meter is developed and produced by our company according to the requirements of Chinese petrochemical industry standard SH/T 0059-1996 "Lubricating oil evaporation loss measurement method (Noak method)".ASTM D5800 DIN51581
It is suitable for lubricating oil and lubricating oil base oil to be heated for 1h under certain conditions, and the evaporated oil is carried out by air.
The evaporation loss of the sample was measured according to the mass difference of the sample before and after heating.
Lubricating Oil Evaporation Loss Tester (NOAK Volatility Test) ASTM D5800
ASTM D5800 Standard Test Method for Evaporation Loss of Lubricating Oils by the Noak Method
Noak Method Lube Oil Evaporation Loss Meter by ASTM D5800 DIN51581
Performance characteristics
1. Metal bath heating device, safe and environmentally friendly;
Wood alloy is added to the bath body for better heat transfer.
2, imported precision differential pressure gauge, to ensure accurate pressure.
3, Equipped with special vacuum suction system, precision needle valve pressure regulating system, imported needle valve, to ensure accurate flow regulation.
4, Intelligent liquid crystal touch screen, automatic temperature control, input quality, automatic calculation of evaporation loss, storage of calculation results, timing alarm
Technical Parameters
| Working power supply | AC (220±10%) V, 50Hz(customizable) |
| Temperature control mode | Digital display PID temperature control |
| Temperature control range | Normal temperature to 250 °C ± 0.1 °C |
| Heating method | Metal bath heating |
| Pressure regulation | Highly precise needle valve |
| Suction method | Vacuum pump |
| Differential pressure measurement | Differential pressure measurement |
| Appplicable test standard | ASTM D5800, SH/T 0059-2010 |
| Applicable standard | SH/T0059 ASTM D5800 DIN51581 |
| Instrument size: 380 * 360 * 450mm Weight: 28kg | |
Packing list
| S/N | Name | Unit | Quantity | Remarks |
| 1 | Lubricating oil evaporation loss tester | set | 1 | |
| 2 | Evaporation crucible | piece | 1 | |
| 3 | Reamer | piece | 1 | |
| 4 | Small brush | piece | 1 | |
| 5 | Crucible frame | piece | 1 | |
| 6 | Crucible wrench | piece | 1 | |
| 7 | Temperature sensor | piece | 1 | |
| 8 | Suction pipe wrench | piece | 1 | |
| 9 | Wood alloy | g | 50 | |
| 10 | Slag scoop | piece | 1 | |
| 11 | power cord | piece | 1 | |
| 12 | instruction manual | copy | 1 | |
| 13 | Certificate warranty card | copy | 1 |
Company Introduction
Shandong Shengtai Instruments Co., Ltd. is specialized in the research and production of experimental testing instruments and industrial testing instruments. It is a professional instrument company integrating instrument research and development, manufacturing, sales and service. Its products are widely used in food, flour, grain and oil, Feed, electricity, petrochemical, industrial oil, aerospace, coal quality and other industries.
For more than 10 years, Shengtai has always been adhering to the "first-class service, customer first" as the purpose, "reasonable price, honesty and trustworthiness" as the business policy. Adhere to technical innovation, with rich knowledge of the technical team and experienced, thoughtful after-sales service team.
Shengtai instrument as one of the most large-scale and competitive enterprises in the industry, with the strength of technology research and development, professional technical knowledge and innovative design concept, in the model improvement, Significant technical breakthrough has been achieved in the development of function expansion and intelligent control system.
Unlike most domestic manufacturers that only adhere to domestic standards, Shengtai Instruments optimizes its product design and supporting services for the global market:
Comprehensive coverage of multiple standards: The core products simultaneously meet the standards of various countries such as China's GB and the United States' ASTM, and the test results are recognized in the global oil trade scenarios.
OUR service
After-sales service commitment, our company to sell the product after-sales service commitment: warranty period of one year, long-term technical support outside the warranty period. During the warranty period, the seller shall bear the cost of the replacement of the equipment, the freight and maintenance of the instrument; outside the warranty period, the seller shall waive the maintenance fee and charge only the cost of the basic materials and freight charges when the instrument is malfunctioning and the seller shall not charge the maintenance fee during the warranty period.
