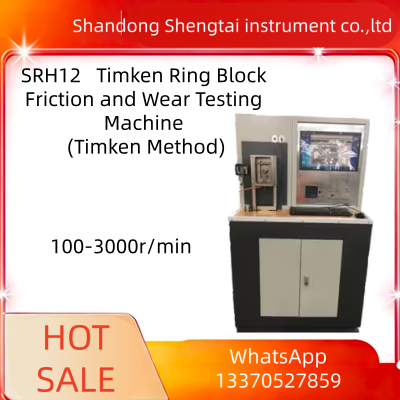

SRH12 Timken Ring‑Block Friction‑Wear Tester for Lubricant Extreme‑Pressure Performance Test

SRH12 Timken Ring‑Block Friction‑Wear Tester for Lubricant Extreme‑Pressure Performance Test

  Also referred to as a Timken test rig, this equipment gauges the load‑bearing capability of different lubricants‑including liquid lubricating oils, greases, and solid lubricant films‑under defined lab conditions. It identifies the highest test load a lubricant can sustain before its protective oil film fails. Built to comply with the national standard SH/T0203‑1992 for testing extreme‑pressure properties of greases via Timken apparatus, it assesses specimen friction‑wear behaviour through line‑contact sliding motion.

Alternative product titles
Ring‑on‑Block Friction and Wear Test Unit
High‑Speed Ring‑Block Wear Test Rig
Ring‑Block Wear Test Rig
High‑Speed Ring‑Block Wear Test Rig

  Its operating setup works as follows: one component is a standard rotating test ring, while the mating counterpart is a stationary rectangular test block of standard dimensions.
  To assess how much load a lubricant can take, alongside friction‑wear traits of matched friction materials, operators measure the width of linear wear scars left on the stationary block sample at varying load levels. Friction force and coefficient values between the contacting test pieces are also recorded for evaluation.

  This unit assesses lubricant performance under oil‑bath lubrication scenarios. It fits particularly well for simulating anti‑wear performance of mid‑to‑high‑grade automotive gear oils. Besides lubricant tests, it also supports wear‑related research for a wide range of metals, non‑metals, and surface coating materials.

  The machine adopts a frame‑style build. A servo motor manages lever‑type loading, and test parameters can be set in grouped batches. It is simple to run and delivers stable, trustworthy test outputs. Its all‑in‑one mechanical layout houses the PC, control software, industrial control modules and driving actuators within one single frame. It oversees every step of the test workflow, pulls live experimental data, and generates relevant plotted graphs. Operators are free to save, recall, and print out test datasets or plotted curves whenever needed.

Compliant specifications:
GB/T 11144‑2007 (ASTM D2782), Standard Test Method for Measuring Extreme‑Pressure Properties of Lubricating Fluids Using the Timken Procedure
SH/T0203‑2014, Test Method for Extreme‑Pressure Properties of Greases with a Timken Tester

OK load value: The heaviest weight placed on the loading lever weight pan that will not trigger scoring or seizure when checking a lubricant’s load‑carrying performance.
Scratch (scoring) load value: The lightest weight added onto the loading lever weight pan that brings on scoring or metal seizure throughout lubricant load‑bearing testing.

Brief test procedure overview:
Warm the test oil sample up to 37.8℃±2.8 ℃ prior to running any tests.
During testing, a rotating steel test ring rubs against a fixed steel test block.
Surface linear speed sits at 123.71 m/min ±0.77 m/min, corresponding to spindle rotational speed of 800 r/min ±5 r/min.

Two key readings must be obtained:
The lightest weight that ruptures the oil film between the spinning ring and stationary block and results in seizure or scoring — this is defined as the scratch (scoring) value.
The maximum weight that keeps the interfacial oil film intact, with no scoring or metal sticking taking place, known as the OK value.

II. Main technical specifications:

Packing list

Company Profile

  Shandong Shengtai Instrument Co., Ltd. specializes in R & D and promotion of experimental testing instruments and industrial testinginstruments. It is a professional instrument company integrating instrument research and development, manufacturing, sales and service.

Its products are widely used in food, flour, grain and oil, feed, electricity, petroleum Chemical, industrial oil, aerospace, coal and other industries.

  For more than ten years, Shengtai Instruments has always adhered to the tenet of "first-class service, customer first" and "reasonable price, honesty and trustworthiness" as its business policy. Adhere to technical innovation, a technical team with rich instrument knowledge and an experienced and attentive after-sales service team.

  As one of the largest and competitive enterprises in the industry, Shengtai Instruments has achieved major technological breakthroughs in model improvement, function expansion and the development of intelligent control systems by virtue of its technical research and development strength, professional technical knowledge and innovative design concepts. .

  Shengtai Instruments continues to provide customers with excellent quality,good service and the most cost-effective products in the continuous development.It has been trusted and supported by our customers. Our products are sold well in China and exported to Australia, Nigeria, Canada, and South Korea Waiting for more than fifty countries and regions.

  Unlike most domestic manufacturers that only adhere to domestic standards, Shengtai Instruments optimizes its product design and supporting services for the global market:
Comprehensive coverage of multiple standards: The core products simultaneously meet the standards of various countries such as China's GB and the United States' ASTM, and the test results are recognized in the global oil trade scenarios.
