| Brand Name: | Shengtai Instrument |
| Model Number: | SH416 |
| MOQ: | 1 |
| Payment Terms: | T/T |
| Supply Ability: | 100000sets/year |

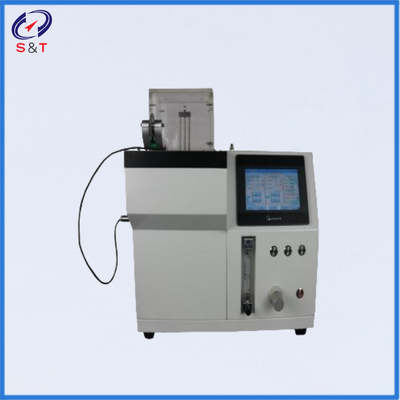

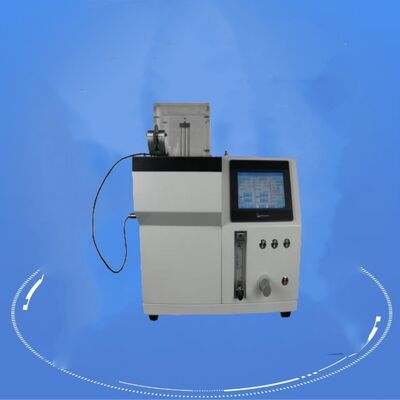

## SH416 Automatic Engine Oil Borderline Pumping Temperature Tester (ASTM D3829 Compliant)
The SH416 Automatic Engine Oil Borderline Pumping Temperature Tester is developed and manufactured in accordance with Chinese national standard **GB/T 9171‑1988 Method for Measuring Borderline Pumping Temperature of Engine Oils** and petrochemical industry standard SH/T 0562. It also complies with ASTM D3829 and ASTM D4684 standards.
This instrument is used to determine the borderline pumping temperature, low‑temperature yield stress and apparent viscosity of automotive engine oils. It features a broad test temperature range from ‑5 °C to ‑40 °C.
**Alternative product names:**
‑ ASTM D3829 Critical Pumping Temperature Tester with Mini‑Rotary Viscometer
‑ ASTM D3829 Borderline Pumping Temperature Tester with Mini‑Rotary Viscometer
‑ ASTM D4684 Engine Oil Borderline Pumping Temperature Test Apparatus
‑ ASTM D3829 & D4684 Fully‑Automatic Engine Oil Borderline Pumping Temperature Test Equipment
‑ Automated Mini‑Rotary Viscometer for Testing Low‑Temperature Pumping Viscosity of Engine Oils
The entire test procedure is automatically controlled by computer.
Performance characteristics
1, temperature range: temperature range -5℃ to -40℃, temperature control accuracy ±0.1℃
2, Fully enclosed compressor refrigeration, large cooling capacity
3. Temperature, period and rotor movement are monitored by computer
4, Improved pulley components, enhance the stability and sensitivity of the pulley, photoelectric sensor test
5, 5 rotors can be detected at the same time, diversity
6. Transparent plexiglass cover for insulation is provided on the rotor
7, Microcomputer control, Windows operating system, all Chinese interface
8, the program automatically nonlinear curve temperature control, measurement of yield stress and apparent viscosity
9, cleaning control and temperature calibration function
10. Calibration and storage of viscometer constants
11. Test results can be stored and printed
12. Calculate and print the boundary pumping temperature of "gas choke type" and "flow limited type"
13. Equipped with special low temperature thermostat
14, equipped with research and development of the defrost system
Technical parameters
| Applicable standard | ASTM D3829 D4684 GB/T 9171 |
| refrigeration method | imported compressor refrigeration |
| working temperature | 80~-40℃ |
| temperature control mode | program temperature control |
| heating method | electric heating tube heating |
| Detection method | photocell detection |
| control mode | computer automatic control |
| working power supply | AC220V 50HZ |
| Unit of work | 9 units |
packing list
| S/N | Name | Unit | Quantity | Remarks |
| l | Host | set | 1 | |
| 2 | Computer printer | set | 1 | |
| 3 | Vacuum pump | set | 1 | |
| 4 | Constant temperature cold bath | set | 1 | |
| 5 | Viscosity rotor (including center pin and locating pin) | set | 9 | |
| 6 | Fine cotton thread | piece | 1 | |
| 7 | Weights | piece | 7 | |
| 8 | hold-all | piece | 1 | |
| 9 | instruction | copy | 1 | |
| 10 | Certificate warranty card | copy | 1 |
