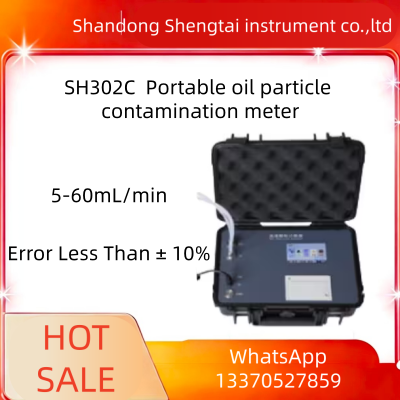

SH302C Portable Oil Particle Contamination Meter: High On-site Laser Tester with Water

SH302C Portable Oil Particle Contamination Meter: High On-site Laser Tester with Water

The SH302C portable oil particle contamination meter adopts the counting principle of the light blocking (shading) method specified by the International Hydraulic Standards Committee, and is specifically used as a rapid detection device for on-site oil contamination levels. It has the advantages of small size, light weight, fast detection speed, high accuracy, and good repeatability, and can work under high temperature, high pressure, and other harsh conditions. Built in micro water sensor and temperature sensor, it can detect both water content and oil temperature while detecting contamination. It is suitable for transformer oil (i.e. insulating oil), hydraulic oil, lubricating oil, synthetic oil, and other fluids, and can be widely used in aerospace, petrochemical, transportation and port, steel metallurgy, automobile manufacturing, and other fields.

Key Features

• Adopting the principle of light blocking (shading) method, using high-precision laser sensors, featuring small size, high accuracy, and stable performance

• Suitable for laboratory or on-site testing, as well as optional pressure reducing devices for online high-pressure measurement and real-time monitoring of particle contamination in the oil system

• Can be externally connected to a pressure chamber to form positive/negative pressure, enabling the detection of high viscosity samples and sample degassing

• Built-in data analysis system, which can display the true data of particle size of each channel and automatically determine the sample grade

The pipeline is made of 316L and PTFE materials to meet the requirements of various organic solvents and oil detection

• With volume flushing and duration flushing modes, it is convenient for users to use and maintain the equipment

• Built in ISO4406, NAS1638, SAE4059 (integral and differential), GJB420A, GJB420B Г OCT17216, GB/T14039 and other particle pollution level standards

• Built-in calibration function, which can be calibrated according to standards such as GB/T21540, ISO4402, and GB/T18854

• Built-in data analysis system, which can automatically determine the sample grade according to standards, and has automatic data processing and printing functions

• Built-in micro water sensor and temperature sensor

• Bilingual Chinese and English, one button switch, with preset, input, modification, and storage functions, convenient and fast operation

• Large storage, optionally stored in internal or external storage devices of the instrument

• Embedded design, high-strength housing, easy to carry, suitable for all types of construction machinery

Technical indicators

Technical indicators

• Light source: semiconductor laser

• Offline detection speed: 5-60mL/min

• Offline testing of sample viscosity: ≤ 100cSt

• Online detection pressure: 0.1-0.6Mpa

• Particle size range: 1-500 μ m

• Interface: USB interface, power interface

• Data storage: Provides 1000 sets of data storage space and supports USB flash disk storage

• Sensitivity: 0.8 μ M or 4 μ m(c)

• Limit coincidence error: 40000 particles/ml

• Counting volume: 1-999ml

• Counting accuracy: error less than ± 10%

• Protection level: IP67

• Test interval: 1 second to 24 hours

• Test sample temperature: 0-80 ℃

• Reference value of water activity: 0-1aw (± 0.05aw)

• Water content: 0-360ppm (± 10%)

• Operating temperature: - 20-60 ℃

• Power supply: DC12V

• Weight: 5.5kg

• Screen size: 10.2 inches

• Battery capacity: 8000mAh

• Volume: 365 ×295× 170mm
