ASTM D1831 Lubricating Grease Roll Stability Tester Stainless Steel Roller Digital Temp Controller Testing Equipment

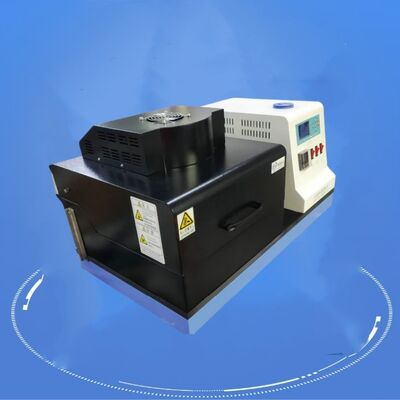

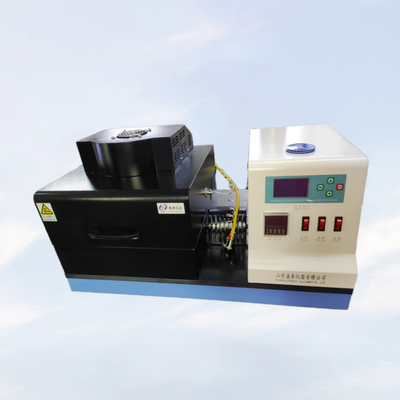

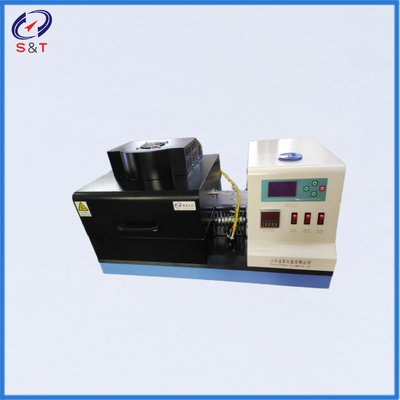

# SH129 Lubricating Grease Roll‑Stability Tester

**Compliant with ASTM D1831 & SH/T 0122**

## Product Description

The SH129 Lubricating Grease Roll‑Stability Tester is built in accordance with ASTM D1831 and SH/T 0122 standards. A prescribed amount of grease sample is loaded into the test drum and subjected to a 2‑hour test run at ambient temperature. The worked cone penetration of the lubricating grease is measured before and after the test procedure.

This instrument evaluates consistency changes of lubricating grease induced by mechanical shear inside the test drum, so as to characterize the mechanical shear‑stability performance of test greases.

Technical Parameters

1. Compliant standards: ASTM D1831 and SH/T0122
2. Heating system: Electric heating coil heating
3. Timing method: Digital timer control
4. Temperature control range: 21℃ to 38℃
5. Motor rotational speed: 155 to 180 revolutions per minute (r/min)
6. Test stations: 2 independent units
7. Total power consumption: 1000 Watts
8. Operating power supply: AC 220V, 50Hz

Performance Features

1. Stainless steel test drums: Φ90mm × 180mm, 5kg each
2. Idler pulley fitted with a positioning ring to ensure stable and proper operation of the test drums
3. Drive motor mounted at the base, maintaining a consistent rotational speed between 155 and 180 r/min
4. Belt-driven transmission system for the test drums
5. Microprocessor-controlled temperature regulator with digital display, ±5℃ temperature accuracy, and PT100 platinum resistance temperature sensor
6. Digital timer for precise test duration recording, equipped with an audible alarm upon test completion
7. Capable of conducting simultaneous tests on two test drums
8. Thermometer port provided on the instrument cover for manual temperature calibration and correction

packing list

  Shandong Shengtai Instruments Co., Ltd. is specialized in the research and production of experimental testing instruments and industrial testing instruments. It is a professional instrument company integrating instrument research and development, manufacturing, sales and service. Its products are widely used in food, flour, grain and oil, Feed, electricity, petrochemical, industrial oil, aerospace, coal quality and other industries.

  For more than 10 years, Shengtai has always been adhering to the "first-class service, customer first" as the purpose, "reasonable price, honesty and trustworthiness" as the business policy. Adhere to technical innovation, with rich knowledge of the technical team and experienced, thoughtful after-sales service team.

Shengtai instrument as one of the most large-scale and competitive enterprises in the industry, with the strength of technology research and development, professional technical knowledge and innovative design concept, in the model improvement, Significant technical breakthrough has been achieved in the development of function expansion and intelligent control system.

OUR service

  After-sales service commitment, our company to sell the product after-sales service commitment: warranty period of one year, long-term technical support outside the warranty period. During the warranty period, the seller shall bear the cost of the replacement of the equipment, the freight and maintenance of the instrument; outside the warranty period, the seller shall waive the maintenance fee and charge only the cost of the basic materials and freight charges when the instrument is malfunctioning and the seller shall not charge the maintenance fee during the warranty period.
