| Brand Name: | Shengtai Instrument |
| Model Number: | SH126E |
| MOQ: | 1 |
| Payment Terms: | T/T |
| Supply Ability: | 10000 sets/year |

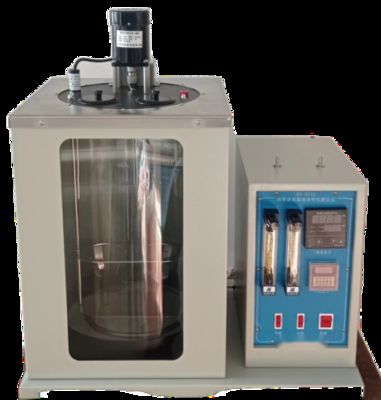

SH126E oil High temp foam tester conforms toASTM D6082 SH/T0722 method requirements. It is suitable for testing the foam tendency and foam stability of oil under the standard conditions.
lubricating oil high temperature foam characteristics tester is suitable for testing the foam characteristics of lubricating oil at 150℃.
Heat the specimen to 49 ℃, 30 min after cooling to room temperature, constant temperature measuring cylinder inside the sample and then transferred to the regulation, and heated to 150 ℃, spreading metal head in dry air, ventilation, 5 min, determine the static foam moments before stop ventilation quantity, sport bubble volume and stop after aeration time amount of static bubble, bubble disappear time and percentage of total volume increase.
Laboratory Equipment High Temperature Lubricating Oil Foam Characteristics Test
Lubricant High Temperature Foaming Characteristic Test Instrument by ASTM D6082
ASTM D6082 Apparatus for High Temperature Foaming Characteristics
150 Degree High Temperature Lubricating Oils Foamstability Foaming Testing Machine ASTM D6082
Technical parameters
● Temperature control mode: imported PID digital display temperature controller
● temperature control accuracy: ±0.1℃
● Heating method: oil bath heating
● Power of the whole machine: 2.5KW
● Working unit: 2 tubes
● flow control: precision flow meter
●working power supply: AC220V/ 50HZ
● temperature range: 150±0.1℃
| Power supply | AC(220±10%)V, 50Hz |
| Applicable standard | ASTM D6082 SH/T0722 |
| Temperature control type | Imported PID digital thermostat |
| Heating method | water-bath heating |
| Power Supply | 2.5KW |
| Temperature control range: | (Room temp.~150)ºC |
| Temperature control accuracy: | ±0.1ºC |
| Work unit | 2 Tubes |
| Flow control | precision flow meter |
| Temperature range | 150±0.1℃ |
| Instrument size: 380 * 380 * 550mm Weight: 35kg | |
