| Brand Name: | Shengtai instrument |
| Model Number: | SH259B |
| MOQ: | 1 |
| Payment Terms: | T/T |
| Supply Ability: | 20000sets/year |

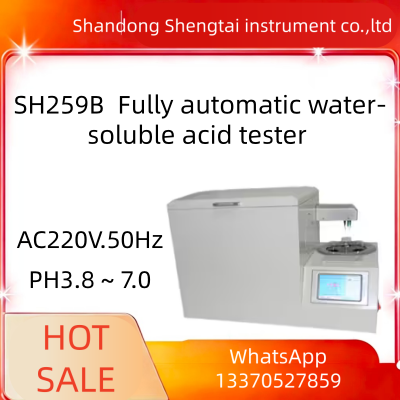

SH259B Fully‑Automatic Water‑Soluble Acid Tester Transformer Turbine Oil pH Detection Instrument
The SH259B automatic water‑soluble acid tester is manufactured complying with GB/T7598‑2008, the test standard for water‑soluble acid in circulating transformer oil and turbine oil via colorimetric method, as well as GB/T 259 covering test practices for water‑soluble acid and alkali of petroleum goods. It serves mainly to measure water‑soluble acid content (pH value) inside transformer oil, turbine oil, anti‑fuel oil and similar petroleum‑based products.
Boasting great automatic performance, this device only requires operators to pour oil sample and water following standard requirements. It then runs heating, shaking, oil‑water separation, dual aqueous‑sample extraction step‑by‑step as specified. Two reagents, bromocresol green and bromocresol purple, will be dosed separately for colour developing and colorimetric analysis. Test readings can be shown on screen and printed out afterwards.
While lifting work efficiency and test precision, this equipment cuts down operators’ exposure to test samples and chemical reagents, so as to better safeguard personal safety on site.
Manual testing steps are not needed. Simply place samples into sample cups, and the unit will carry out sample feeding, heating‑shaking, measurement, waste liquid draining and result output all by itself.
It works for testing water‑soluble acid for liquid petroleum goods, additives, lubricating grease, paraffin and wax‑mixed substances. It finds wide application across petroleum, power generation, chemical processing, pharmacy, commodity inspection, research institutes and environmental‑protection sectors.
SH259B Automatic Tester for Water‑Soluble Acid & Alkali of Petroleum Products
SH259B‑Automatic Tester for Petroleum Water‑Soluble Acid‑Alkali
Product Features
1. Developed strictly against GB/T7598‑2008 specifications, this tester delivers reliable detection on water‑soluble acid for transformer oil, turbine oil, anti‑fuel oil and other petroleum products.
2. Equipped with a large colourful touch‑screen LCD panel, it enables straightforward and user‑friendly operation.
3. pH values are obtained by means of colorimetric testing.
4. Featuring outstanding automatic capability: just feed oil and water as per standards. The machine can finish heating, shaking, standing separation, oil‑water phase separation, colour development, colorimetric measurement, result display and print jobs without extra manual work.
5. It supports sequential testing for one up to three samples in a single batch run.
Product parameters
| Power supply | AC220V.50Hz |
| Standard. | GB/T7598-2008 |
| Test range | PH3.8 ~ 7.0 |
| Measurement error | ≤±0.05 pH |
| Repeatability: | ≤0.05 pH |
| Applicable temperature | 10ºC~45ºC |
| Relative humidity | ≤85% |
| Power | 500W |
| Instrument size: 680 ×420× 345mm Weight: 25kg | |
Packing list
| S/N | Name | Unit | Quantity | remarks |
| 1 | Automatic water-soluble acid analyzer host | set | 1 | |
| 2 | Mindray cup | piece | 150 | |
| 3 | Bromocresol green indicator | piece | 1 | 100ml |
| 4 | Bromocresol violet indicator |
Piece |
1 | 100ml |
| 5 | Bromocresol green indicator cap |
Piece |
1 | |
| 6 | Bromocresol violet indicator cap | piece | 1 | |
| 7 | Peristaltic pump pipe | meter | 1 | Ф4mm |
| 8 | Lead the waste pipe | piece | 1 | 4×6×350 |
| 9 | Power cord | piece | 1 | 250V 10A |
| 10 | Fuse | piece | 2 | 10A |
| 11 | Printing paper |
Copy |
2 | |
| 12 | Product specification |
Copy |
1 | |
| 13 | Certification |
Copy |
1 | |
| 14 | Warranty card |
Copy |
1 |
Company Introduction
Shandong Shengtai Instruments Co., Ltd. is specialized in the research and production of experimental testing instruments and industrial testing instruments. It is a professional instrument company integrating instrument research and development, manufacturing, sales and service. Its products are widely used in food, flour, grain and oil, Feed, electricity, petrochemical, industrial oil, aerospace, coal quality and other industries.
For more than 10 years, Shengtai has always been adhering to the "first-class service, customer first" as the purpose, "reasonable price, honesty and trustworthiness" as the business policy. Adhere to technical innovation, with rich knowledge of the technical team and experienced, thoughtful after-sales service team.
Shengtai instrument as one of the most large-scale and competitive enterprises in the industry, with the strength of technology research and development, professional technical knowledge and innovative design concept, in the model improvement, Significant technical breakthrough has been achieved in the development of function expansion and intelligent control system.
Unlike most domestic manufacturers that only adhere to domestic standards, Shengtai Instruments optimizes its product design and supporting services for the global market:
Comprehensive coverage of multiple standards: The core products simultaneously meet the standards of various countries such as China's GB and the United States' ASTM, and the test results are recognized in the global oil trade scenarios.
OUR service
After-sales service commitment, our company to sell the product after-sales service commitment: warranty period of one year, long-term technical support outside the warranty period. During the warranty period, the seller shall bear the cost of the replacement of the equipment, the freight and maintenance of the instrument; outside the warranty period, the seller shall waive the maintenance fee and charge only the cost of the basic materials and freight charges when the instrument is malfunctioning and the seller shall not charge the maintenance fee during the warranty period.
