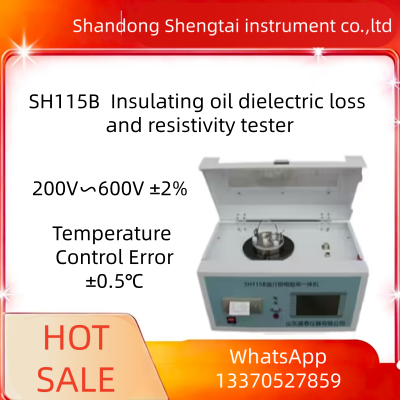

SH115B Insulating Oil Dielectric Loss Resistivity Tester Liquid Insulating Medium Performance
The SH115B model serves as an all‑in‑one high‑accuracy test device, built to check dielectric loss angle alongside volume resistivity values for transformer insulating oil and various liquid‑type insulating substances. Its inner assembly brings together a dielectric‑loss test oil cell, temperature regulation module, temperature probe, loss‑measuring bridge, AC test power source, reference standard capacitor, high‑resistance measuring unit and DC high‑voltage supply.
Fully‑digitized hardware is adopted inside the tester to realize fully automated smart detection with multiple test options. It comes with a 320×240 large touch‑screen panel, complete Chinese‑language menu navigation and step‑by‑step on‑screen prompts. Test reports support direct print output. Field staff can get proficient with operations without specialized professional training.
Technical parameters
| 1 | Conditions of use | -15℃∽40℃ RH＜80% | |
| 2 | Electrical source | AC 220V±10% Unrestricted frequency | |
| 3 | AC high voltage output | 400V∽2200V ±2% every100V 50VA | |
| 4 | DC high voltage output | 200V∽600V ±2% | |
| 5 | Temperature controlled induction furnace | The most powerful500W | |
| 6 | Temperature control range | <100℃ | |
| 7 | Temperature control error | ±0.5℃ | |
| 8 | Resolution of temperature measurement | 0.1℃ | |
| 9 | Temperature control of time | At room temperature to90℃ Less than20min | |
| 10 | Measuring range |
tgδ C x R |
Unlimited 15PF-300PF 10M-10T |
| 11 | resolution |
△ tgδ: △ Cx : △ Rx : |
0.001% 0.01pF 0.01 |
| 12 | Fine degree |
△ tgδ: △ Cx : △ Rx : |
±(reading*0.5%+0.040%) ±(reading*0.5%+0.5PF) ±reading * 10% |
| 13 | Relative dielectric constant | εr | According to the Cx Automatic calculation with the same precision Cx |
| 14 | Volume resistivity | ρ | According to the Rx Automatic calculation with the same precision Rx |
| 15 | Overall dimensions | 450(L)×310(W)×360(H) | |
| 16 | Heavy volume | 18Kg | |
Packing list of insulating oil dielectric loss resistivity meter
| S/N | Name | Quantity | Unit | Remarks |
| 1 | Instrument host | 1 | set | |
| 2 |
Oil cup |
1 | piece | |
| 3 | Test temperature sensing wire | 1 | piece | |
| 4 | Data acquisition line | 1 | piece | |
| 5 | Inspect 2KV high-voltage test line | 1 | piece | |
| 6 | Send to test line | 1 | piece | Black/long/clip at one end/connector at one end |
| 7 | Measuring cup | 1 | piece | 50ml |
| 8 | power cord | 1 | piece | |
| 9 | instructions | 1 | copy | |
| 10 | Packing list | 1 | copy | |
| 11 | Certificate warranty card | 1 | copy |
