| Brand Name: | Shengtai instrument |
| Model Number: | SH108A |
| MOQ: | 1 |
| Payment Terms: | T/T |
| Supply Ability: | 3000sets/year |

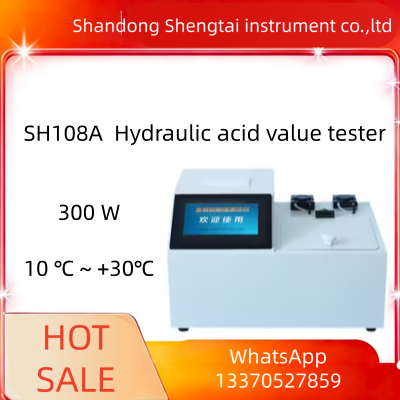

SH108A Automatic Oil Acid Value Tester GB/T4945 Auto‑Titration Analyzer LCD Display Printing
SH108A auto‑operated acid value tester complies with PRC national standards GB/T 264 “Determination of Acid Value for Petroleum Products”, GB7599, GB/T4945, alongside ASTM D974 and GB7299 specifications.
This unit comes with a large‑size colour LCD screen and Chinese‑language menu, with physical keyless controls.
Built‑in microchip enables hands‑off measurement and printout functions. Full test workflows run automatically, delivering straightforward, easy‑to‑follow operation.
Fitted with magnetic stirring with zero operational noise, the device is robust, secure and space‑saving.
Well suited for refineries, power generation plants and research labs, it serves as a go‑to piece of kit for oil testing and routine quality control.
Built around titration‑neutralisation chemistry, the onboard microcontroller carries out fluid dispensing, titration, sample mixing and endpoint detection all on its own. Readouts show up on the LCD panel, and hard copies can be printed out automatically. A full test cycle finishes within 7 minutes.
Purpose‑built reagent vessels store extractant and titrant. They keep chemicals sealed off from ambient air to cut down solvent evaporation and prevent interference from atmospheric carbon dioxide. This design also offers extra safety protection for operators.
Users may select to run tests on 1 up to 3 oil specimens in one single batch.
Hydraulic oil product parameters
| Range | 0.001~ 3.000 mgKOH/g |
| power rate | 300 W |
| Differential power | 0.001 mg KOH/g |
| Accuracy | ± 0.005mgKOH/g |
| Repeatability | 0.003 mg KOH/g |
| Power voltage | AC 220 V ±10%,50Hz±1Hz |
| Ambient temperature | 10 ℃ ~ +30℃ |
| Relatively humidity | <80 % RH |
| Width * height * depth | 420 x 250 x 280 mm |
| Weight | 10 kg |
Technical indicators
Oil Acid Value Analyzer And Acidity Measuring Instrument
Required consumables: the instrument itself has a set of reagents, after the use of their own purchase or self-matching.
Packing list
| S/N | Name | Unit | Quantity | Remarks |
| 1 | Host | set | 1 | |
| 2 | Sample oil cup | piece | 3 | |
| 3 | Stir bar | piece | 3 | |
| 4 | extract | piece | 1 | |
| 5 | Neutralization liquid | piece | 1 | |
| 6 | Power cord (250V, 6A) | piece | 1 | |
| 7 | Insurance tube (Φ 5 x 20, 10 a), | piece | 1 | |
| 8 | Printing paper | piece | 1 | |
| 9 | Needle (6#) | piece | 1 | |
| 10 | Needle (9#) | piece | 1 | |
| 11 | Silicone tube (inner hole Φ 2 x 1) | metre | 1 | According to the need by the user self-cutting |
