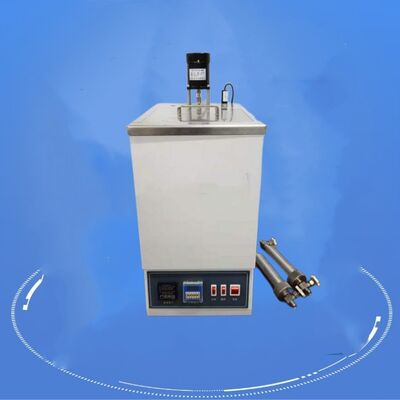

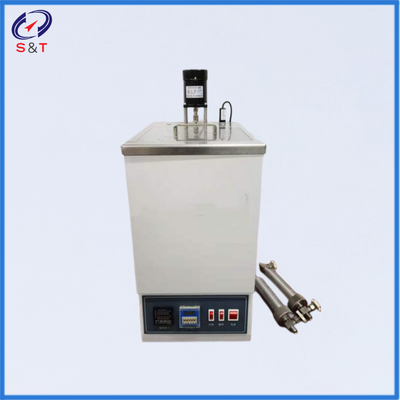

SD0232 Liquefied Gas Copper Corrosion Tester SH/T0232 Double Hole PID Automatic Adjustment
The SD0232 LPG Copper Corrosion Tester is designed and manufactured to comply with the provisions of SH/T 0232, the national petrochemical industry standard titled Test Method for Copper Strip Corrosion by Liquefied Petroleum Gases.
This instrument is used to determine the corrosive effect of liquefied petroleum gas on copper strips.
Technical parameters and characteristics
| Standard | SH/T0232 |
| Display | Digital Display |
| Adjustment method | PID automatic adjustment |
| Temp control accuracy | 40 ℃± 0.5 ℃ |
| Color palette | imported |
| Copper sheet size | 75 * 12.5 * (1.5-3) mm (L * W * H) |
| Copper sheet material | high-purity electrolytic copper |
| Temp control range | Room temp ～ 100 ℃ |
| Temp control accuracy | ± 0.1 ℃ |
| Temp controlled heating power | 2000W |
| Number of test holes | 2 holes |
| Temperature sensor | Pt100 |
| Mixing motor | 25W |
| Power supply | AC220V ± 10% 50Hz |
● The constant‑temperature water bath shall conform to the requirements specified in Clause 3.1.1 of SH/T 0232.
● Both the actual and set temperatures of the water bath are digitally displayed. A dedicated bracket is provided to hold the test cylinder in vertical position. The water bath features adequate depth to fully immerse the cylinder and valve throughout the test.
● Constant‑temperature heating is realized by a PID auto‑tuning controller, guaranteeing temperature‑control accuracy of 40 ℃ ± 0.5 ℃.
● Color comparison plate: imported
● Copper strip: 75 mm long, 12.5 mm wide, 1.5‑3.0 mm thick. Fabricated from ≥99.9%‑purity electrolytic copper with smooth quenched and cold‑rolled surface. Drill a 3.0 mm‑diameter hole, 3.0 mm from the centre of one end of the copper strip.
● Temperature control range: Ambient temperature to 100 ℃
● Temperature control accuracy: ± 0.1 ℃
● Heating power: 2000 W
● Test positions: 2 positions
● Temperature sensor: Pt100
● Stirring motor power: 25 W
● Power supply: AC220 V ± 10 %, 50 Hz
Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.
Instrument configuration
| Number | Name | Unit | Quantity | Note |
| 1 | Liquefied petroleum gas copper corrosion tester | Unit | 1 | |
| 2 | Experimental bomb | Piece | 2 | |
| 3 | Bath cover | Piece | 1 | |
| 4 | Test piece | Piece | 2 | |
| 5 | Observing test tubes | Piece | 1 | |
| 6 |
Temperature gauge 0-50 ℃ Scale division 0.1 ℃ |
Piece | 1 | |
| 7 | Shade guide | Piece | 1 | |
| 8 | Liquefied petroleum gas sampler 500ml 4MPa | Piece | 1 |
Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:
----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;
----The materials and main components provided meet the technical requirements specified in the technical documentation;
----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).
----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.
----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.
----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
