| Brand Name: | Shengtai Instrument |
| Model Number: | SH6532 |
| MOQ: | 1 |
| Payment Terms: | T/T |
| Supply Ability: | 1000 set per mouth |
The SH6532 Crude Oil Salt Content Tester is designed and manufactured in compliance with Chinese national standard GB/T 6532 Standard Test Method for Salt Content of Crude Petroleum and Petroleum Products. It is applied to measure the total halide content (mass fraction: 0.002 %‑0.02 % m/m) in crude oil, reduced crude, cracked residue and fuel oil.
This instrument can also evaluate seawater contamination in turbine oil and marine fuel oil. It may be adopted for testing other sample types when the required test precision falls within the method’s applicable range.
This electrometric‑method crude oil salt content tester complies with ASTM D6470.
| product model | SH6532 |
| product name | Extraction of Crude oil salt content tester |
| manufacturer | Shandong Shengtai Instrument Co., Ltd |
| surveillance project | It is suitable to determine total amount of halides (concentration from 0.002% to 0.02% (m/m)) in the crude petroleum, reduced oil, cracked residue and fuel oil. |
| Standard | GB/T6532 and ASTM6470 |

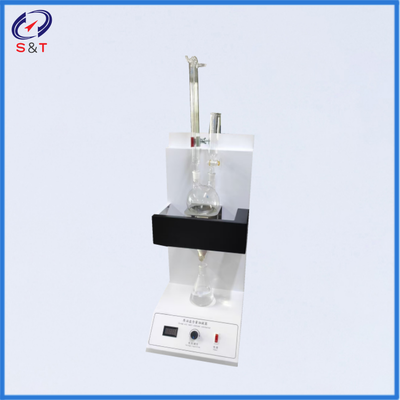

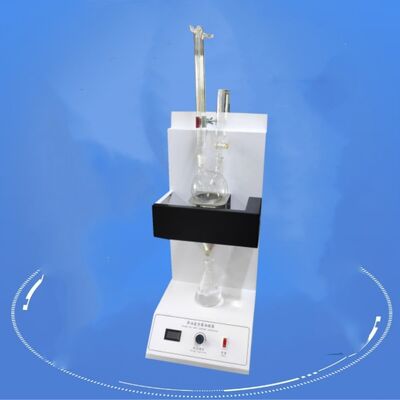

Main structure of instrument
⑴ extraction: flask and heating parts: 500ml; the heating part consists of electric heating wire wrapped around the lower end.
⑵ column drop funnel: used to add hot, absolute ethanol, other reagents and make quantitative separation.
⑶ condenser: condensing the distilled gas.
⑷ temperature control knob: used to heat the test solution requiring heating.
⑸ separator funnel piston: control piston of extracdischarge solution.
⑹ triangle bottle: grinding mouth triangle bottle, used to connect the solution released from the flask.
⑺ aviation plug: tractor heating wire working power plug
key technical indexes
1. Extractor: As per standard GB/T 6532
2. Heating power of extractor: 300W
3. Power supply: AC(220±10)V,50Hz
4. Dimension of main unit: 380mm*220mm*690mm
Note: The customer shall provide a magnetic mixer and a potential titrator
| Extractor | as per GB/T6532 |
| Heating power of extractor | 300 W |
| Dimension of main unit |
380mm*220mm*690mm
|
| Insulating resistance of the instrument | no less than 2MΩ |
| Power supply | 220±10V, 50Hz |
