| Brand Name: | Shengtai instrument |
| Model Number: | SH126B |
| MOQ: | 1 |
| Payment Terms: | T/T |
| Supply Ability: | 20000sets/year |

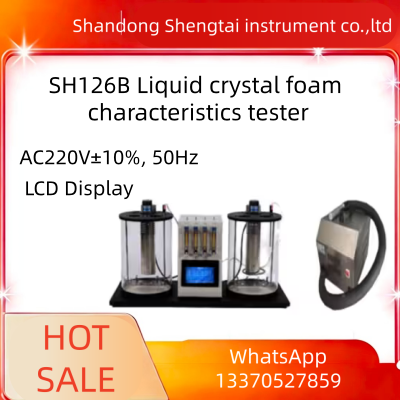

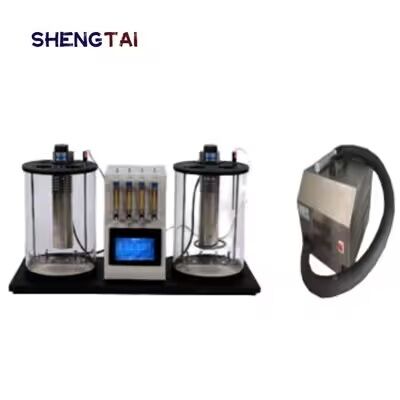

SH126B LCD Foam Tester Dual Bath Oil Foam Characteristic Detector ASTM D892 Lubricant Foam Performance Test
SH126B liquid crystal foam tester is designed according to GB/T12579-90 "Lubricating Foam Performance Determination Method" and ASTMD892. It is used to determine the foam characteristics of engine lubricating oil, gear oil, hydraulic oil and other oil products to evaluate the foam tendency of lubricating oil and the degree of foam stability.
Lubricants Testing Equipment Double Baths ASTM D892 Foam Characteristics Tester
ASTM D892 Lubricants Foaming Tendencies Analyzer Lubricating Oil Foam Characteristic Tester
Lubricating Oils Testing Laboratory ASTM D892 Foam Test Equipment
ASTM D892 Foaming Characteristics of Lubricating Oils Analyzer
The instrument is controlled by dynamic temperature control, automatic timing, air source and gas flow centralized control, 32-bit ARM processor control, high-definition color touch screen display, PID temperature control and setting technology has the advantages of accurate test temperature and high constant temperature accuracy.
The instrument can be operated according to the test method of GB/T12579-90 "Determination of Lubricating Oil Foam Performance".Foam Testing Equipment Electronic for Lubricating Oils ASTM D892 & GB/T12579 Bubble Tester
Used for testing fuel oil, lubricating oil, gear oil, hydraulic oil and other oil products.
II. Technical parameters
| working power supply | AC220V±10%, 50Hz |
| temperature control mode | LCD display |
| Temperature control range | 5~99.9℃ with refrigerators |
|
Temperature control accuracy: |
±0.1℃; |
| temperature measuring element | platinum resistance (PT100) |
| the number of tests | double bathtub, can do 2 samples at the same time |
| the test cylinder specification | 1000mL (special cylinder) |
| diffuser air permeability | at 2.4kPa (250mmH2O) pressure of 3000 ~ 6000mL/min; |
| timing accuracy | ±0.05 seconds |
| heating power | heater power: 2500W (93.5℃ bathtub) 800W (24℃ bathtub) |
| timing accuracy | 0.01%+0.05 seconds (at 20℃) |
| ambient temperature | -10~+40℃ |
| relative humidity | ≤85% |
| Power consumption of the whole machine | no more than 3000W. |
| Gas diffuser diameter: | 25.4mm. |
| Instrument size: 680 * 380 * 550mm Weight: 35kg | |
Packing list
| S/N | Name | Quantity | unit | Remarks |
| 1 | Host | 1 | set | |
| 2 | Portable refrigerating plant | 1 | set | |
| 3 | Measuring cylinder | 4 | piece | |
| 4 | Foam head | 4 | piece | |
| 5 | Gauge plug | 4 | piece | |
| 6 | Rubber hose | 2 | meter | |
| 7 | Thermometer | 1 | piece | |
| 8 | Power cord | 1 | piece | |
| 9 | Fuse tube | 1 | piece | 10A |
| 10 | Instruction manual | 1 | copy | |
| 11 | Packing list | 1 | copy | |
| 12 | Certificate | 1 | copy |
Company Introduction
Shandong Shengtai Instruments Co., Ltd. is specialized in the research and production of experimental testing instruments and industrial testing instruments. It is a professional instrument company integrating instrument research and development, manufacturing, sales and service. Its products are widely used in food, flour, grain and oil, Feed, electricity, petrochemical, industrial oil, aerospace, coal quality and other industries.
For more than 10 years, Shengtai has always been adhering to the "first-class service, customer first" as the purpose, "reasonable price, honesty and trustworthiness" as the business policy. Adhere to technical innovation, with rich knowledge of the technical team and experienced, thoughtful after-sales service team.
Shengtai instrument as one of the most large-scale and competitive enterprises in the industry, with the strength of technology research and development, professional technical knowledge and innovative design concept, in the model improvement, Significant technical breakthrough has been achieved in the development of function expansion and intelligent control system.
Unlike most domestic manufacturers that only adhere to domestic standards, Shengtai Instruments optimizes its product design and supporting services for the global market:
Comprehensive coverage of multiple standards: The core products simultaneously meet the standards of various countries such as China's GB and the United States' ASTM, and the test results are recognized in the global oil trade scenarios.
OUR service
After-sales service commitment, our company to sell the product after-sales service commitment: warranty period of one year, long-term technical support outside the warranty period. During the warranty period, the seller shall bear the cost of the replacement of the equipment, the freight and maintenance of the instrument; outside the warranty period, the seller shall waive the maintenance fee and charge only the cost of the basic materials and freight charges when the instrument is malfunctioning and the seller shall not charge the maintenance fee during the warranty period.
