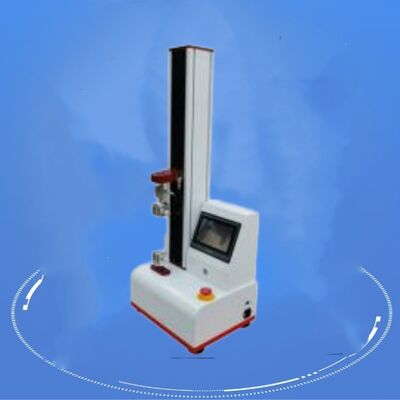

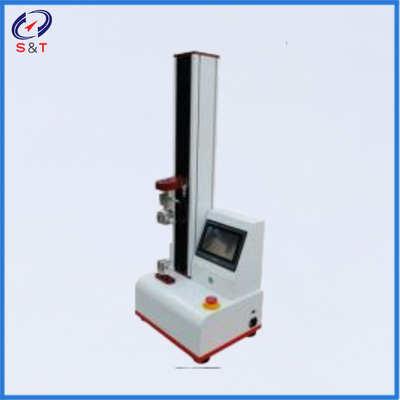

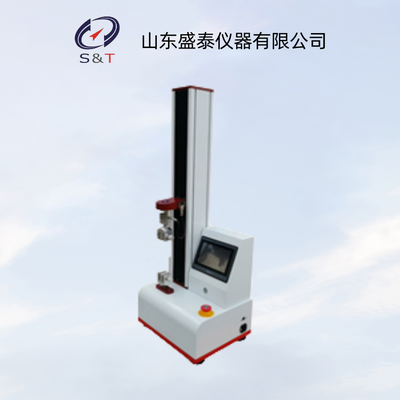

ST103 Ointment 180° Electronic Peel Test Machine English Introduction
ST103 Ointment 180° Electronic Peel Tester is a professional pharmaceutical testing instrument featuring precise control and low noise operation.
Developed in strict compliance with the 2020 edition of Chinese Pharmacopoeia <0952 Adhesion Force Determination Method>, the ST103 180° electronic peel tester adopts advanced mechanical design and ergonomic principles, and is equipped with high-precision microcomputer processing technology. Featuring an innovative structure, user-friendly operation, stable performance and elegant appearance, it represents a new generation of high-performance pharmaceutical testing equipment.
Test Principle
The test sample is fixed between the two clamps of the dedicated fixture, which perform relative displacement during operation. A high-sensitivity force sensor mounted on the movable clamp and the built-in precision displacement sensor of the equipment synchronously collect real-time force and displacement data throughout the test. The system automatically calculates and outputs the 180° peel strength of the tested sample.
Product features
l The instrument adopts high-precision ball screw, which drives smoothly and accurately; Adopting imported servo motors, with low noise and precise control
l Large screen touch screen display and Chinese menu. Real time display of force time, force deformation, force displacement, etc. during the experiment; The instrument has strong data display, analysis, and management capabilities.
l Adopting a 24 bit high-precision AD converter (resolution up to 1/10000000) and high-precision weighing sensors, ensuring the fast and accurate collection of instrument force data
l Adopting a modular all-in-one printer, it is easy to install and has low malfunctions; Thermal printer.
l Direct measurement results: After completing a set of experiments, it is convenient to directly display the measurement results and print statistical reports, including mean, standard deviation, and coefficient of variation.
l High degree of automation: The instrument design adopts advanced domestic and foreign devices, with microcomputers for information sensing, data processing, and action control. It has the characteristics of automatic reset, data memory, overload protection, and fault self diagnosis.
Product parameters
l Specification: 100N or 500N
l Accuracy: better than level 0.5
l Deformation resolution: 0.001mm
l Test speed: 1-500mm/min stepless speed regulation
l Travel: 400mm
l Boundary dimensions: 500mm (L) x 300mm (W) x 1150mm (H)
l Power supply: AC220V, 50HZ
Packing list
| S/N | Name | Quantity | Unit | Remarks |
| 1 | Electronic peel testing machine | 1 | set | |
| 2 | Special 180 ° peel off fixture | 1 | piece | |
| 3 | Standard pressure roller | 1 | piece | |
| 4 | Stainless steel peel test plate | 1 | piece | |
| 5 | Printing paper | 4 | roll | |
| 6 | Power cord | 1 | piece | |
| 7 | Certificate of conformity warranty card | 1 | copy | |
| 8 | Instructions | 1 | copy |
